BMPS9215F

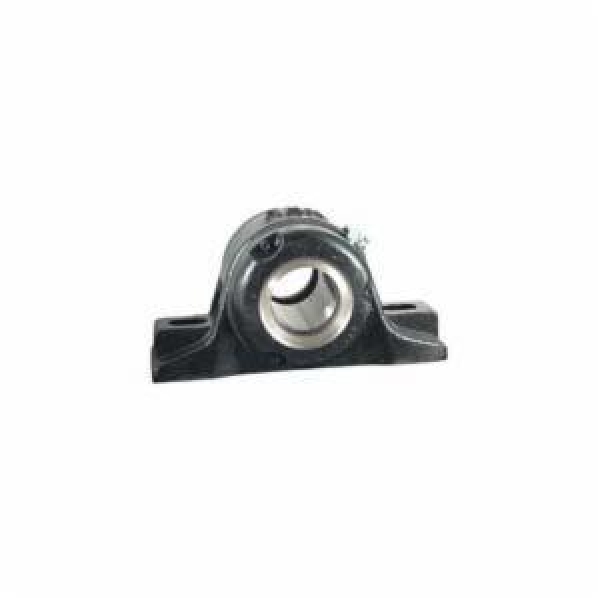

Rex® BMPS9215F 9000 Extra Heavy Duty Solid Housed Pillow Block Spherical Roller Bearing Unit, 2-15/16 in Dia Bore, 11-1/2 in L Bolt Center-to-Center, 4 in Base to Bore Centerline, 15 in OAL x 8-3/8 in OAH
- CP#:
- Item#: BMPS9215F
- Mfr#: BMPS9215F
- UPC: 698210005528
- Easy bearing clearance adjustment
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running and quiet, high-speed and high-load capacity bearing
- Multiple housing styles
- Spyglass™ optical strain sensor (OSS)
- Positive locking system
- Tapered mounting sleeve
- Corrosion resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® roller bearings are available in shaft sizes from 3/4 in through 7 in. Design improvements have increased load ratings and speed limits, combined with internal bearing design improvements. These features provide lower noise levels and are key performance factors that provide long bearing life. Rex® roller bearings allow for +/- 2 deg of dynamic misalignment to accommodate installation in accuracies or shaft deflection. A unique feature of Rex® bearing seals is that they are field replaceable and field upgradeable. Rex® roller bearings are available with a variety of seal choices, housing styles and shaft attachments to meet various application requirements.
Rex® Pillow Block Spherical Roller Bearing Unit, Extra Heavy Duty Solid Housed, Series: 9000, 2-15/16 in Bore, 11-1/2 in Bolt Center-to-Center Length, 4 in Base to Bore Centerline, 15 in Overall Length, 4-1/4 in Overall Width, 8-3/8 in Overall Height, Four-Bolt Base Mounting, Round Bore, 5 in Base Width, Adapter Mounted Locking Device, Heavy Contact Seal, Expansion Expansion, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 5 in |
| Base to Bore Centerline | : | 4 in |
| Series | : | 9000 |
| Bolt Center-to-Center Length | : | 11-1/2 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Expansion |
| Locking Device | : | Adapter Mounted |
| Finish | : | Powder Coated |
| Overall Length | : | 15 in |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 1400 rpm |
| Overall Width | : | 4-1/4 in |
| Inside Diameter | : | 2-15/16 in |
| Mounted | : | Yes |
| Overall Height | : | 8-3/8 in |
| Seal Type | : | Heavy Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Manual.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Warranty.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKEP2107_Specification_Sheet.pdf -
