AMPS5303F

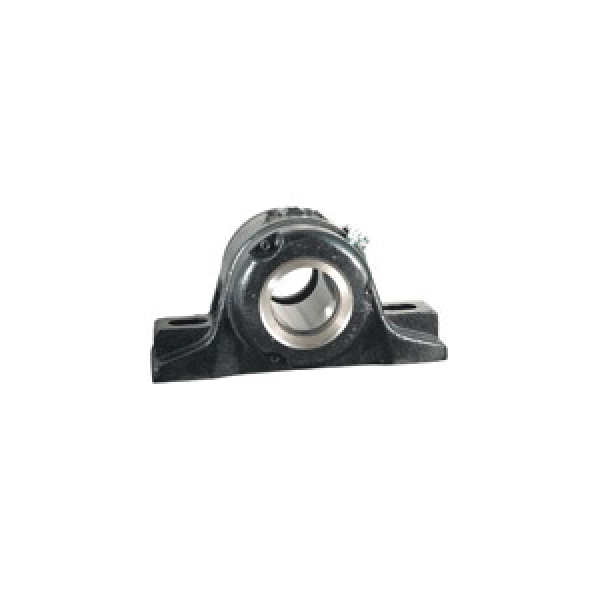

Rex® AMPS5303F 5000 Floating Heavy Duty Pillow Block Spherical Roller Bearing, 3-3/16 in Dia Bore, 11-1/2 in L Bolt Center-to-Center, 4 in Base to Bore Centerline, 15 in OAL x 8-3/8 in OAH
- CP#:
- Item#: AMPS5303F
- Mfr#: AMPS5303F
- UPC: 698210001957
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Increased shaft holding power and stability
- Moderate cost
- Two open auxiliary end caps
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Rex® Pillow Block Spherical Roller Bearing, Floating Heavy Duty, Series: 5000, 3-3/16 in Bore, 11-1/2 in Bolt Center-to-Center Length, 4 in Base to Bore Centerline, 15 in Overall Length, 6-15/16 in Overall Width, 8-3/8 in Overall Height, Four-Bolt Base Mounting, 5 in Base Width, Double Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 84330 lb Dynamic/90700 lb Static Load, 225 deg F, 1400 rpm Maximum, Cast Iron, Powder Coated
SPECIFICATIONS
| Base Width | : | 5 in |
| Base to Bore Centerline | : | 4 in |
| Series | : | 5000 |
| Bolt Center-to-Center Length | : | 11-1/2 in |
| Mounting Type | : | Four-Bolt Base |
| Expansion Type | : | Expansion |
| Locking Device | : | Double Set Screw Collar |
| Finish | : | Powder Coated |
| Overall Length | : | 15 in |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 1400 rpm |
| Overall Width | : | 6-15/16 in |
| Inside Diameter | : | 3-3/16 in |
| Mounted | : | Yes |
| Overall Height | : | 8-3/8 in |
| Seal Type | : | Spring-Loaded/Heavy Contact |
