S40L

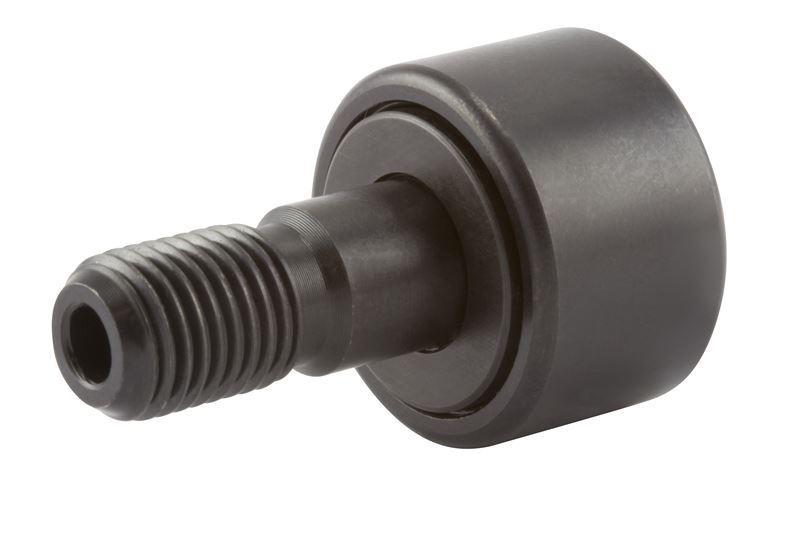

RBC® HexLube® S40L S-L Series Needle Roller Cylindrical Cam Follower, 1-1/4 in Dia x 3/4 in W Roller, 1/2 in Dia x 1-1/4 in L Stud, Chrome Steel Roller
- CP#:
- Item#: S40L
- Mfr#: S40L
- UPC: 637400007850
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
- Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
- Double sealed to keep grease in and contaminants out
- Screwdriver slots
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: S-L Series, 1-1/4 in Roller Dia, 3/4 in Roller Width, 1/2 in Stud Dia, 1-1/4 in Stud Length, 1/2-20 UNF-2A, 5/8 in Thread Length, 4200 lb Dynamic/6600 lb Static, 3900 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Slotted, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Series | : | S-L Series |
| Head Type | : | Slotted |
| Load Capacity | : | 4200 lb Dynamic/6600 lb Static |
| Maximum Speed | : | 3900 rpm |
| Roller Diameter | : | 1-1/4 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 3/4 in |
| Stud Diameter | : | 1/2 in |
| Stud Length | : | 1-1/4 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Standard |
| Thread Length | : | 5/8 in |
| Thread Size | : | 1/2-20 UNF-2A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/438/RBC_CH104L_Catalog.pdf
