RBC31/2

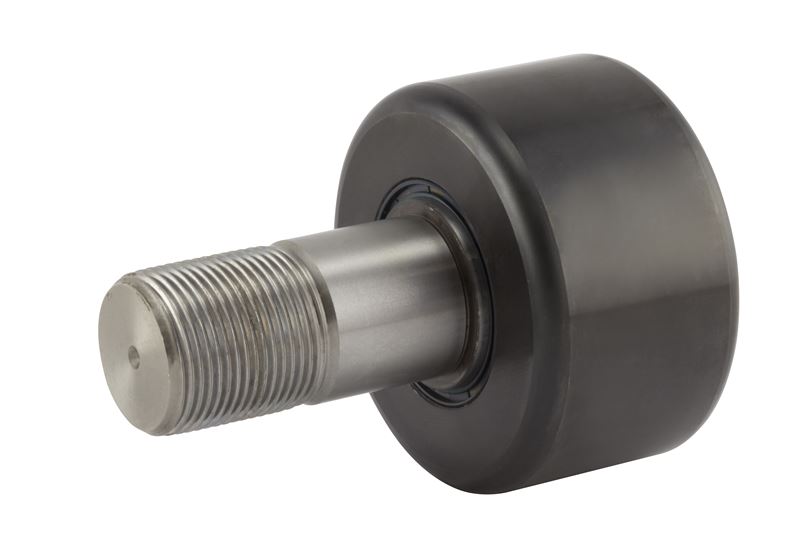

RBC Roller® RBC31/2 RBC Cylindrical Bearing, 3-1/2 in Dia Roller x 2 in W Roller, 1-3/8 in Dia Stud x 2-3/4 in L Stud, Chrome Steel Roller
- CP#:
- Item#: RBC31/2
- Mfr#: RBC31/2
- UPC: 637400022167
- Drive Type Hex
- Effective Thread Length is 1-3/8 in
- Grade 52100
- Increase load carrying capacity without increasing cam follower size Up to double the dynamic load rating
- Invented by RBC to solve some of the toughest machine and product control guidance challenges
- Lube Fitting Size is 1/8 in
- Material Handling, Turntable Mounting, Lift Trucks, Textile Machinery
- Max Static Capacity is 53000 lb
- Number of Rows Double Row
- Operate at much higher rotary speeds RBC Roller cam followers operate at speeds up to 2 times higher
- Product Weight is 6.22
- Repair and replace cycle is greatly reduced because RBC Roller cam followers operate up to 5 times longer
- Stud Diameter is 1-3/8 in
- Stud Length is 2-3/4 in
- Thread Size 1-3/8"-12
- Two rows of cylindrical rollers delivers tremendous operating advantages in an economical package
- Unique contacting lip seals provide positive protection against contamination while keeping grease inside
- Basic Dynamic Rating is 36100 lb
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
RBC Roller®, RBC31/2, Bearing, Cylindrical, Series: RBC, 3-1/2 in Roller Diameter, 2 in Roller Width, 1-3/8 in Stud Diameter, 2-3/4 in Stud Length, 1-3/8-12 Thread, 1-3/8 in Thread Length, 48100 lb Load, 2900 rpm Maximum, Standard Stud, Sealed Closure, Hex Head, Chrome Steel Roller
SPECIFICATIONS
| Series | : | RBC |
| Head Type | : | Hex |
| Load Capacity | : | 48100 lb |
| Maximum Speed | : | 2900 rpm |
| Roller Diameter | : | 3-1/2 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 2 in |
| Stud Diameter | : | 1-3/8 in |
| Stud Length | : | 2-3/4 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Standard |
| Thread Length | : | 1-3/8 in |
| Thread Size | : | 1-3/8-12 |
