MB40

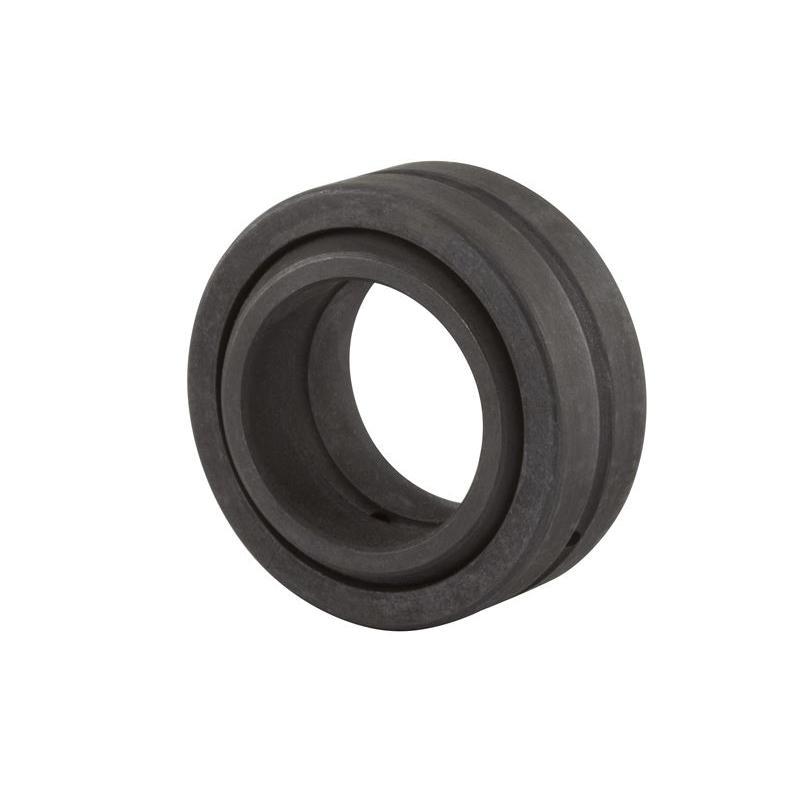

RBC® MB40 MB Series Spherical Plain Bearing, 40 mm Dia Bore, 62 mm OD, 28 mm W, 520 kN Load
- CP#:
- Item#: MB40
- Mfr#: MB40
- UPC: 637400003326
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- 7 deg misalignment angle
- 81.7 kN axial static
- 104 kN dynamic/520 kN static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Series: MB Series, 40 mm Bore Dia, 62 mm Outside Dia, 28 mm W, Open Closure, 520 kN, 52100 Steel Bearing, 148.9 deg C
SPECIFICATIONS
| Series | : | MB Series |
| Bearing Material | : | 52100 Steel |
| Load Capacity | : | 520 kN |
| Outside Diameter | : | 62 mm |
| Width | : | 28 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/518/RBC_IRB10SA_Catalog.pdf
