KF055CP0-RBC

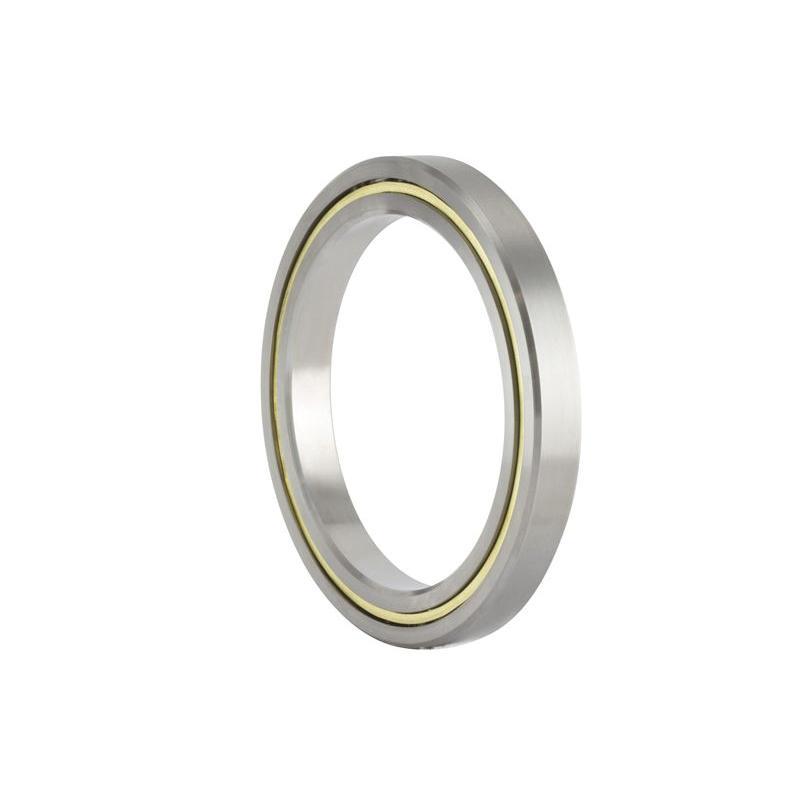

RBC® KF055CP0-RBC KF Series Type-C Radial Contact Thin Section Ball Bearing, 5-1/2 in Dia Bore, 7 in OD, 1 Row, 3/4 in W, 7050 lb Load
- CP#:
- Item#: KF055CPO
- Mfr#: KF055CP0-RBC
- UPC: 637400028121
- Lightweight
- High stiffness
- Small cross section
- Multi load capabilities
- Variety of cross sections and sizes
- Modified and custom bearings
- Not recommended for low torque applications
- The C-type, radial contact ball bearing is designed with deep ball grooves to withstand high loads
- Although this bearing is used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads
- Large diameter
- 1-piece ring, snap-over type separator
- Round bore
- 4540 lb dynamic/7050 lb static
- C0 clearance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
RBC® thin section ball bearings are engineered to solve a variety of design problems that cannot be solved with conventional ball bearings. A bearing is considered a thin section when the bore diameter is greater than four times the radial cross section. Within any thin section ball bearing series, the cross section remains constant as the bore diameter changes. Typically the cross section is twice the ball diameter and nominal dimensions are given in inches.
RBC® Thin Section Ball Bearing, Type-C Radial Contact, Series: KF Series, 5-1/2 in Bore Dia, 7 in Outside Dia, 1 Row, 3/4 in W, Open Closure, 7050 lb, 52100 Steel Bearing, Brass/Composite Cage, 2560 rpm Grease/3200 rpm Oil Maximum, -60 to 250 deg F, Uncoated
SPECIFICATIONS
| Series | : | KF Series |
| Bearing Material | : | 52100 Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 7050 lb |
| Maximum Speed | : | 2560 rpm Grease/3200 rpm Oil |
| Outside Diameter | : | 7 in |
| Number of Rows | : | 1 |
| Width | : | 3/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/RBC_JA020CP0RBC_Catalog.pdf
