CRBC6

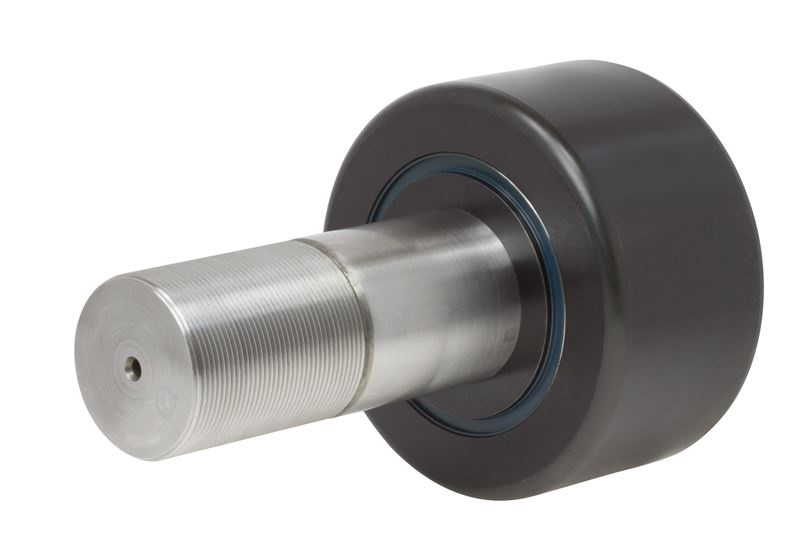

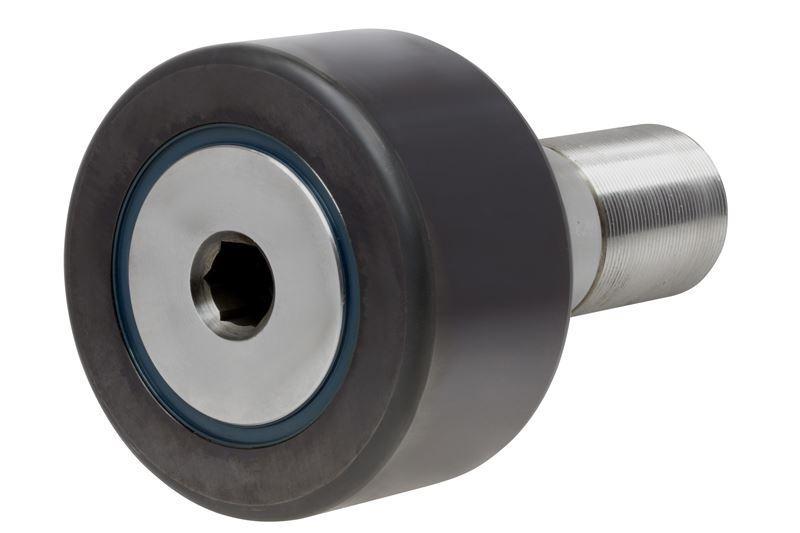

RBC® RBC Roller® CRBC6 Needle Roller Crowned Cam Follower, 6 in Dia x 3-1/4 in W Roller, 2-1/2 in Dia x 6 in L Stud, Chrome Steel Roller
- CP#:
- Item#: CRBC6
- Mfr#: CRBC6
- UPC: 637400198947
- Lasts up to 4 times longer than standard cam followers
- Maintenance free large grease storage cavity and true contacting lip seals provide superior contaminant exclusion and lubricant retention for maintenance free operation
- Increased speeds and boosts productivity
- Lower running temperature approximately 50 deg F cooler
- Interchangeable with needle bearing cam followers
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The patented RBC Roller® is the leading cost-saver in the industry. This long-life cam follower lasts up to 400% longer than standard cam followers, with no maintenance. The RBC Roller® is dimensionally interchangeable with needle roller cam followers. The RBC Roller® is a good selection for production machinery applications where down time is critical and must be avoided, or where cam followers are not readily accessible for relubrication or replacement.
RBC® RBC Roller® Crowned Cam Follower, Needle Roller, 6 in Roller Dia, 3-1/4 in Roller Width, 2-1/2 in Stud Dia, 6 in Stud Length, 2-1/2-12 UNF-2A, 3 in Thread Length, 102000 lb Dynamic/170000 lb Static, 1500 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Head Type | : | Hex |
| Load Capacity | : | 102000 lb Dynamic/170000 lb Static |
| Maximum Speed | : | 1500 rpm |
| Roller Diameter | : | 6 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 3-1/4 in |
| Stud Diameter | : | 2-1/2 in |
| Stud Length | : | 6 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Standard |
| Thread Length | : | 3 in |
| Thread Size | : | 2-1/2-12 UNF-2A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/438/RBC_CH104L_Catalog.pdf
