CH44LW

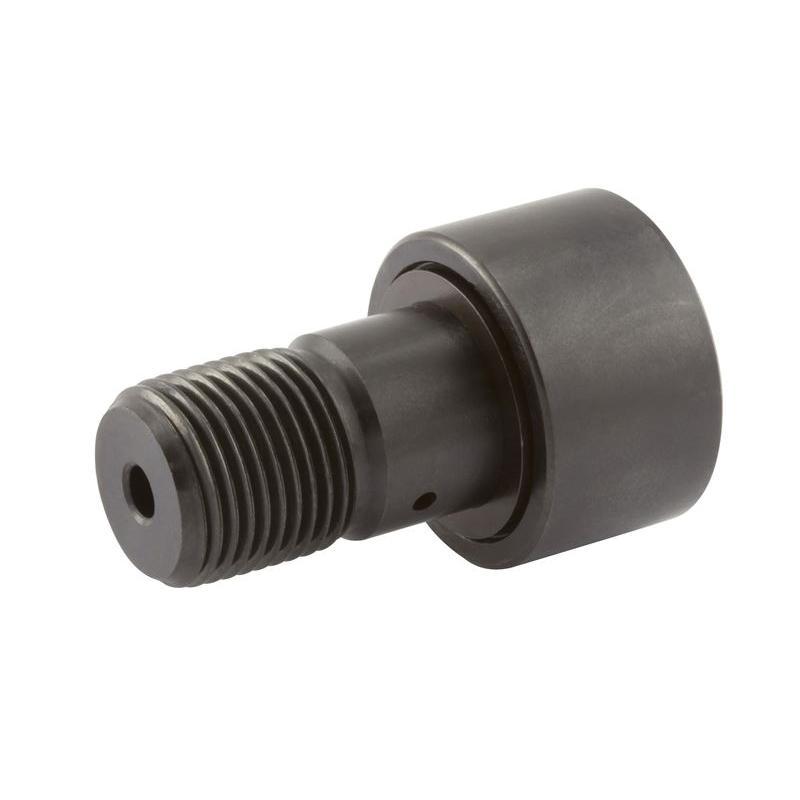

RBC® HexLube® CH44LW CH-LW Needle Roller Universal Crowned Cam Follower, 1-3/8 in Dia x 3/4 in W Roller, 3/4 in Dia x 1-1/4 in L Stud, Chrome Steel Roller
- CP#:
- Item#: CH44LW
- Mfr#: CH44LW
- UPC: 637400004385
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
- Screwdriver slots
- 4000 lb axial dynamic/8500 lb axial static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Universal Crowned Cam Follower, Needle Roller, Series: CH-LW, 1-3/8 in Roller Dia, 3/4 in Roller Width, 3/4 in Stud Dia, 1-1/4 in Stud Length, 3/4-16 UNF-2A, 5/8 in Thread Length, 2680 lb Dynamic/5800 lb Static, 3900 rpm Maximum, 250 deg F, Heavy Duty Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Series | : | CH-LW |
| Head Type | : | Hex |
| Load Capacity | : | 2680 lb Dynamic/5800 lb Static |
| Maximum Speed | : | 3900 rpm |
| Roller Diameter | : | 1-3/8 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 3/4 in |
| Stud Diameter | : | 3/4 in |
| Stud Length | : | 1-1/4 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Heavy Duty |
| Thread Length | : | 5/8 in |
| Thread Size | : | 3/4-16 UNF-2A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/438/RBC_CH104L_Catalog.pdf
