CH128L

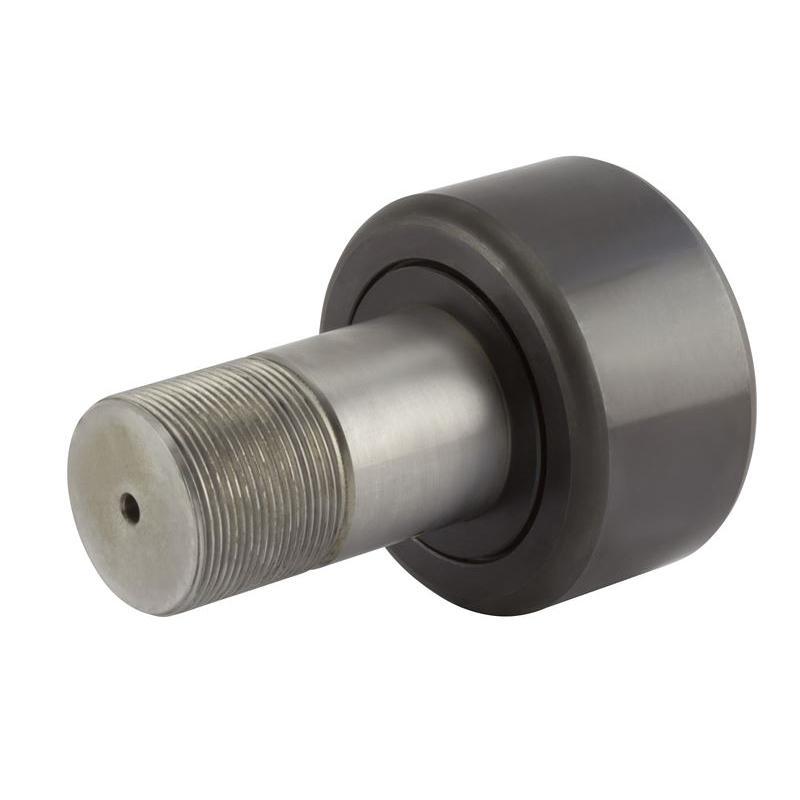

RBC® CH128L CH-L Needle Roller Crowned Cam Follower, 4 in Dia x 2-1/4 in W Roller, 2 in Dia x 3-1/2 in L Stud, Chrome Steel Roller
- CP#:
- Item#: CH128L
- Mfr#: CH128L
- UPC: 637400004200
- Designed to provide additional stud strength for applications with high static loading or shock loads
- Crowned outer rings are used to minimize outer ring thrusting in applications where the axis of the cam follower is not parallel to the surface of the track or is skewed relative to the direction of travel
- Crowned outer rings are a good selection for use with curved or circular tracks
- In well aligned applications, crowned outer rings can cause accelerated track wear
- Screwdriver slots
- 25600 lb axial dynamic/89550 lb axial static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® Crowned Cam Follower, Needle Roller, Series: CH-L, 4 in Roller Dia, 2-1/4 in Roller Width, 2 in Stud Dia, 3-1/2 in Stud Length, 2-12 UNF-2A, 1-1/2 in Thread Length, 22000 lb Dynamic/68000 lb Static, 1300 rpm Maximum, 250 deg F, Heavy Duty Stud, Sealed Closure, Slotted, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Series | : | CH-L |
| Head Type | : | Slotted |
| Load Capacity | : | 22000 lb Dynamic/68000 lb Static |
| Maximum Speed | : | 1300 rpm |
| Roller Diameter | : | 4 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 2-1/4 in |
| Stud Diameter | : | 2 in |
| Stud Length | : | 3-1/2 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Heavy Duty |
| Thread Length | : | 1-1/2 in |
| Thread Size | : | 2-12 UNF-2A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/438/RBC_CH104L_Catalog.pdf
