CFM22

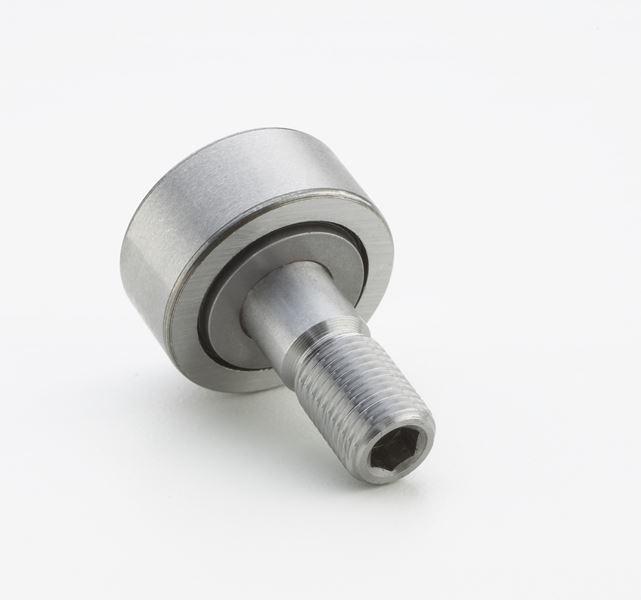

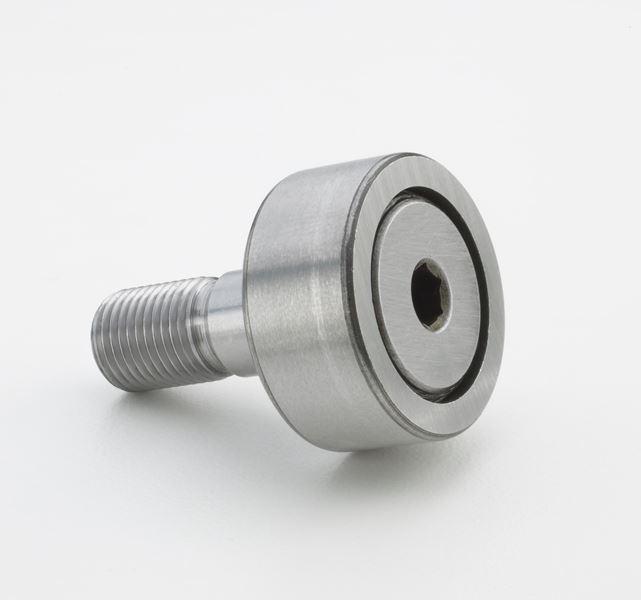

RBC® HexLube® CFM22 Needle Roller Cylindrical Cam Follower, 22 mm Dia x 12 mm W Roller, 10 mm Dia x 23 mm L Stud, Chrome Steel Roller
- CP#:
- Item#: CFM22
- Mfr#: CFM22
- UPC: 637400618469
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
- Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Cylindrical Cam Follower, Needle Roller, 22 mm Roller Dia, 12 mm Roller Width, 10 mm Stud Dia, 23 mm Stud Length, M10 x 1, 12 mm Thread Length, 6200 N Dynamic/7100 N Static, 8500 rpm Maximum, 250 deg F, Standard Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
SPECIFICATIONS
| Finish | : | Black Oxide |
| Head Type | : | Hex |
| Load Capacity | : | 6200 N Dynamic/7100 N Static |
| Maximum Speed | : | 8500 rpm |
| Roller Diameter | : | 22 mm |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 12 mm |
| Stud Diameter | : | 10 mm |
| Stud Length | : | 23 mm |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Standard |
| Thread Length | : | 12 mm |
| Thread Size | : | M10 x 1 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/598/RBC_CFM19_Catalog.pdf
