CL501-36

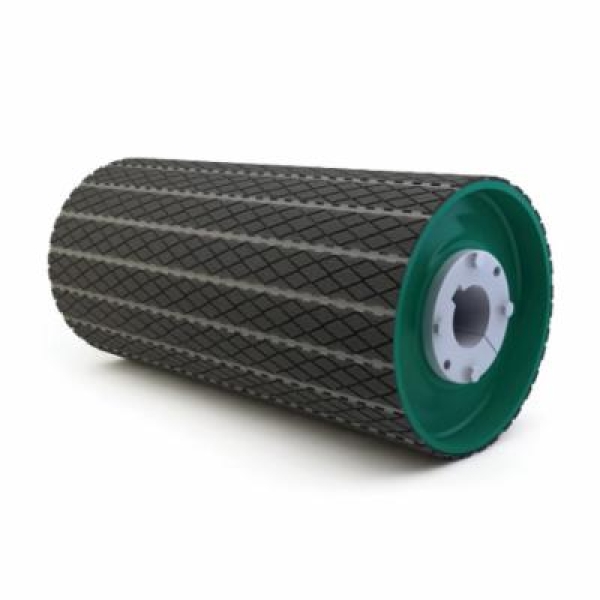

PPI® Craft-Lag® CL501-36 Replaceable Conveyor Pulley Lagging, 36 in Dia x 12 to 78 in W Pulley, Neoprene
- CP#:
- Item#: CL501-36
- Mfr#: CL501-36
- Factory hot vulcanization under pressure assures the best possible bond of rubber to backing plate
- Steel backing plates are precision formed at the factory to fit each individual pulley
- Metal retainers are permanently welded or bolted to the pulley face to securely hold the pads in place
- Self cleaning of the pulley surface occurs due to spaces between the pads and double grooving
- Pads are field replaceable
- Interchangeable with Holz brand lagging
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Craft-Lag® is designed to be a field replaceable lagging. It is bonded to a 5 in wide rigid steel backing, which is then factory formed to a specific pulley diameter. Craft-Lag® can be installed using retainers that are welded or bolted to the pulley rim, or it can be welded directly to the pulley rim without retainers.
PPI® Craft-Lag® Conveyor Pulley Lagging, Replaceable, 36 in Pulley Diameter, 12 to 78 in Pulley Width, 60 Durometer, 2000 psi Tensile Strength, Neoprene
SPECIFICATIONS
| Pulley Diameter | : | 36 in |
| Material | : | Neoprene |
| Durometer | : | 60 |
| Tensile Strength | : | 2000 psi |
| Type | : | Replaceable |
| Pulley Width | : | 12 to 78 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_CL501_16_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_CL501_16_Specification_Sheet.pdf
