C6-20TUI-24SB
PPI® C6-20TUI-24SB Trougher Unequal Impact Idler, C CEMA Rating, 6 in Dia Roll, 20 deg Trough Angle, 24 in W Belt
- CP#:
- Item#: C6-20TUI-24SB
- Mfr#: C6-20TUI-24SB
- Designed and manufactured for a long trouble free life with no greasing
- Maintenance free high quality sealed ball bearings
- Wide heavy duty formed end brackets
- Heavy duty foot pads for a solid base
- Wide center brackets for heavy loads
- Designed with minimal roll gaps
- Roll weld protected from belt wear by the full thickness of the tubing
- Full thickness tubing for the length of the roll with a 1/4 in wall option
- Extremely low T.I.R. or runout
- Large diameter stationary outer seal
- Highly effective flinger seal
- Effective radial and labyrinth seals
- Long lasting nitrile contact seal protected from the environment
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

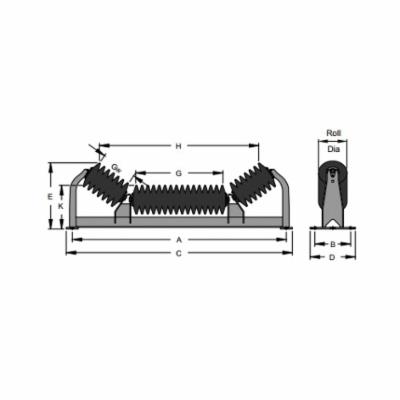

PPI® Trougher Unequal Impact Idler, C CEMA, 6 in Roll Dia, 20 deg Trough angle, 24 in Belt Width, Sealed Ball Bearing, 13-15/16 in/3-15/16 in Roller Length, 33 in Distance Between Mounting Holes, 25-1/4 in Distance Between Roller Ends
SPECIFICATIONS
| Roller Length | : | 13-15/16 in/3-15/16 in |
| Belt Width | : | 24 in |
| Bearing Type | : | Sealed Ball |
| Distance Between Mounting Holes | : | 33 in |
| Distance Between Roller Ends | : | 25-1/4 in |
| CEMA Rating | : | C |
| Roll Diameter | : | 6 in |
| Trough Angle | : | 20 deg |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_01990_Catalog.pdf
