C5-CIRRDW-36SB

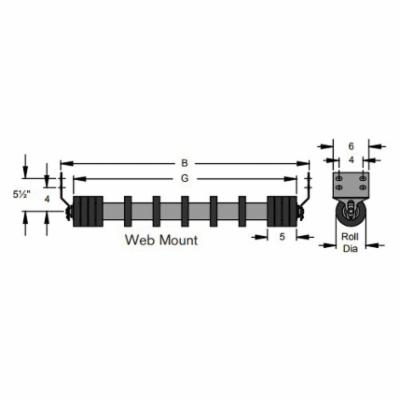

PPI® C5-CIRRDW-36SB Channel Inset Return Rubber Disc Idler With Web Mount Drop, C CEMA Rating, 5 in Dia Roll, 36 in W Belt
- CP#:
- Item#: C5-CIRRDW-36SB
- Mfr#: C5-CIRRDW-36SB
- Designed and manufactured for a long trouble free life with no greasing
- Maintenance free high quality sealed ball bearings
- Wide heavy duty formed end brackets
- Heavy duty foot pads for a solid base
- Wide center brackets for heavy loads
- Designed with minimal roll gaps
- Roll weld protected from belt wear by the full thickness of the tubing
- Full thickness tubing for the length of the roll with a 1/4 in wall option
- Extremely low T.I.R. or runout
- Large diameter stationary outer seal
- Highly effective flinger seal
- Effective radial and labyrinth seals
- Long lasting nitrile contact seal protected from the environment
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
PPI® Channel Inset Return Rubber Disc Idler, C CEMA, 5 in Roll Dia, 36 in Belt Width, Sealed Ball Bearing, 38 in Roller Length, 41-5/8 in Overall Width
SPECIFICATIONS
| Roller Length | : | 38 in |
| Belt Width | : | 36 in |
| Overall Width | : | 41-5/8 in |
| Bearing Type | : | Sealed Ball |
| CEMA Rating | : | C |
| Roll Diameter | : | 5 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_01990_Catalog.pdf
