B5-RRD-16SB-1
PPI® B5-RRD-16SB-1 Return Rubber Disc Idler, B CEMA Rating, 5 in Dia Roll, 16 in W Belt, Steel
- CP#:
- Item#: B5-RRD-16SB-1
- Mfr#: B5-RRD-16SB-1
- Designed and manufactured for a long trouble free life with no greasing
- Maintenance free high quality sealed ball bearings
- Deep formed channel end brackets to handle the loads
- Heavy duty long foot pads for two bolt mounting to alleviate frame rocking
- Single center bolt mounting option
- Minimal roll gaps
- Extremely low T.I.R. or runout
- Roll end welds protected from belt wear
- Full thickness tubing for the entire length of the roll
- Large diameter stationary outer seal
- Highly effective flinger (centrifugal) seal
- Effective radial and labyrinth seals
- High quality ball bearing with manufacturers contact seal and grease
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

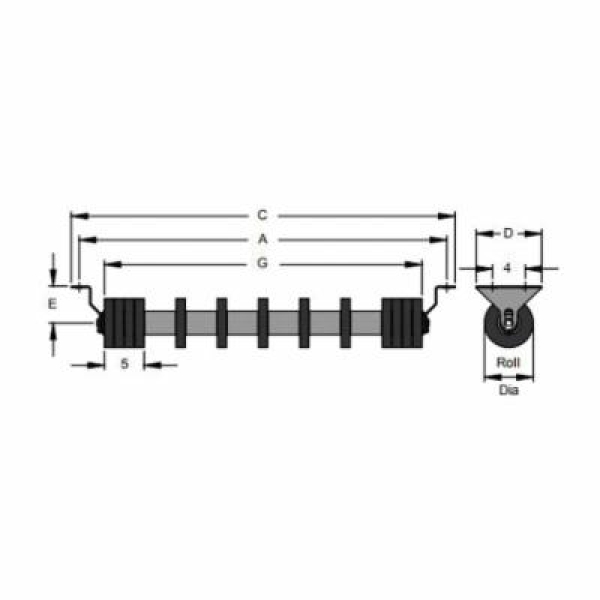

PPI® Return Rubber Disc Idler, B CEMA, 5 in Roll Dia, 16 in Belt Width, Sealed Ball Bearing, 18-1/4 in Roller Length, 27 in Overall Width, 25 in Distance Between Mounting Holes, Steel
SPECIFICATIONS
| Roller Length | : | 18-1/4 in |
| Belt Width | : | 16 in |
| Material | : | Steel |
| Distance Between Mounting Holes | : | 25 in |
| Overall Width | : | 27 in |
| Bearing Type | : | Sealed Ball |
| CEMA Rating | : | B |
| Roll Diameter | : | 5 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_01990_Catalog.pdf
