B4-45TE-48SB
PPI® B4-45TE-48SB Trougher Equal Idler, B CEMA Rating, 4 in Dia Roll, 45 deg Trough Angle, 48 in W Belt
- CP#:
- Item#: B4-45TE-48SB
- Mfr#: B4-45TE-48SB
- Designed and manufactured for a long trouble free life with no greasing
- Maintenance free high quality sealed ball bearings
- Deep formed channel end brackets to handle the loads
- Heavy duty long foot pads for two bolt mounting to alleviate frame rocking
- Minimal roll gaps
- Extremely low T.I.R. or runout
- Roll end welds protected from belt wear
- Full thickness tubing for the entire length of the roll
- Large diameter stationary outer seal
- Highly effective flinger seal
- Effective radial and labyrinth seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

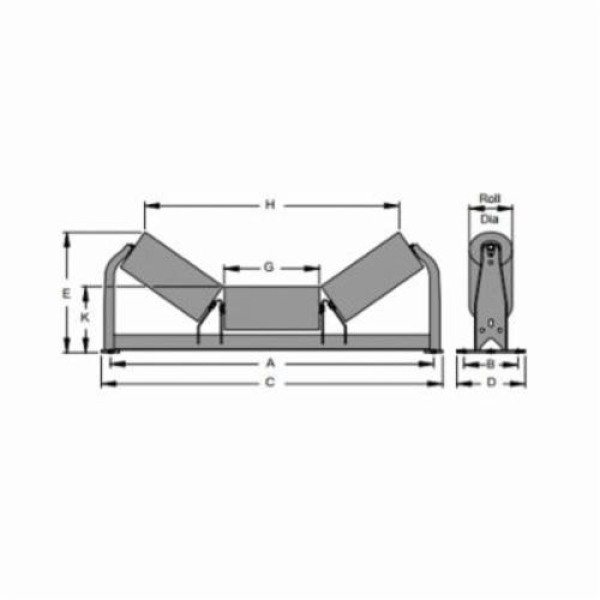

PPI® Trougher Equal Idler, B CEMA, 4 in Roll Dia, 45 deg Trough angle, 48 in Belt Width, Sealed Ball Bearing, 17-5/8 in Roller Length, 57 in Distance Between Mounting Holes, 43-9/16 in Distance Between Roller Ends
SPECIFICATIONS
| Roller Length | : | 17-5/8 in |
| Belt Width | : | 48 in |
| Bearing Type | : | Sealed Ball |
| Distance Between Mounting Holes | : | 57 in |
| Distance Between Roller Ends | : | 43-9/16 in |
| CEMA Rating | : | B |
| Roll Diameter | : | 4 in |
| Trough Angle | : | 45 deg |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PPI_01990_Catalog.pdf
