- Pfannenberg 17141000010
17141000010

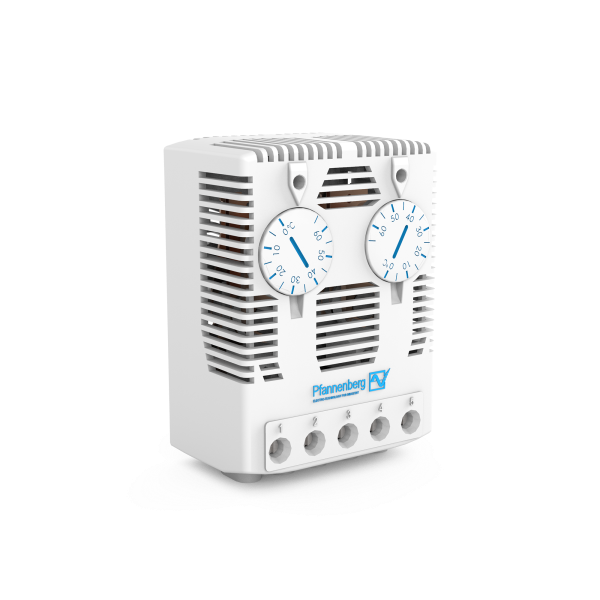

FLZ 541 30..140F with N.C./N.O. Contacts Twin Thermostat
- CP#:
- Item#: 171 4100 0010
- Mfr#: 17141000010
- Rugged design for consistent reliability over a long period of time
- One unit can control two separate devices. When controlling a Filterfan® the FLZ Twin Thermostat can control the operation of the fan, turning it off and on based on a set temperature. When also controlling a heater, the FLZ Twin Thermostat can turn the heater on and off based on enclosure temperature, saving energy
- UL Recognized to NITW2 & NITW8 standards for easy integration into UL 508A panels
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Flexible Mounting allows unit to be direct mounted or connected to a standard DIN rail without tools. Control dials are color coded based on the model. The FLZ 541 comes with a red dial for controlling the heater and a blue dial for controlling the fan. The FLZ 542 comes with 2 red dials for controlling 2 heaters or a heater and alarm. The FLZ 543 comes with 2 blue dials for controlling 2 fans or a fan and alarm. Compact design easily installs into areas that have a limited installation space. Rugged design for consistent reliability over a long period of time. One unit can control two separate devices. When controlling a Filterfan® the FLZ Twin Thermostat can control the operation of the fan, turning it off and on based on a set temperature. When also controlling a heater, the FLZ Twin Thermostat can turn the heater on and off based on enclosure temperature, saving energy. UL Recognized to NITW2 & NITW8 standards for easy integration into UL 508A panels
SPECIFICATIONS
| Dimensions | : | Unspecified |
| Frequency Rating | : | Unspecified |
| Material | : | Plastic |
| Operating Temperature Range | : | -40..80 deg C |
| Series | : | FLZ 541 |
| Setting Range Relative Humidity | : | None |
| Suitable For Use With | : | Fan/Heater |
| Type | : | Twin Thermostat |
| Voltage Rating | : | Unspecified |
| Setting Range | : | 0..60 deg C |
| Contact Type | : | N.C./N.O. w/Spring Contact |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Manual_FLZ_520_530_54x.pdf
