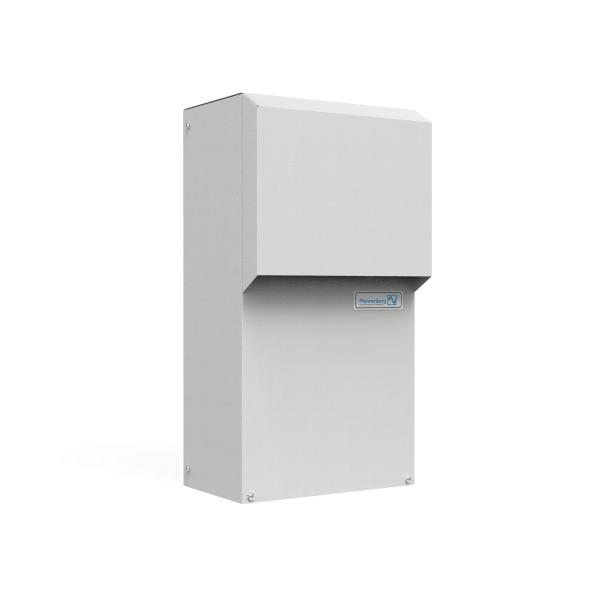

DTS 3161 460V Type 3R/4 Side Mount 3000-4000 (Btu/h) Cooling Unit (Light Gray)

  • Item#: 133 8543 6355
  • Mfr#: 13385436355
  • Thermal overload protection ensures the longevity of the compressor by incorporating temperature switches in both compressor and fan motors, automatically shutting down the unit to prevent damage from excessive temperatures.
  • Thermal expansion valve optimizes refrigerant flow for efficient performance across all temperatures.
  • High-pressure cutoff switch ensures pressure overload protection by shutting down the compressor in case of excessive pressure in the refrigeration circuit.
  • High ambient performance in our NEMA Type 12 and outdoor units for environments that require cooling where the maximum ambient temperature is 131 F.
  • Hermetically sealed compressor never needs recharging, maintaining 100% cooling efficiency.
  • ERP efficiency certified components compliant with Kyoto Protocol's CO reduction standards and ERP Directive for fan efficiency ratings.
  • Rugged Design is well-suited for manufacturing environments and can be easily painted to match enclosures or machines.
  • Environmentally Friendlier R134a refrigerant for easier service and minimal environmental impact.
  • The DTS 3161 NEMA 3R and DTS 3181 NEMA 4/4X cooling units feature a special corrosive protectant coating on ambient-side pipes and coils, ensuring maximum protection against saltwater, sour gas, and other corrosive substances.
  • High airflow backward curve impeller fan with a long-lasting, single-bearing design outperforms standard two-bearing blowers, boasting nearly double the lifespan.
  • The DTS 3161 NEMA 3R and DTS 3181 NEMA 4/4X cooling units are uniquely designed to be self-protected in outdoor and washdown environments. An example of this is the location of our control electronics within our dry, cool interior circuit.
  • Maintenance free, wide fin filter-less design is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
  • Active condensate collection pan, eliminating the need for drain tubes and buckets. The heater activates only when required to conserve power.
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Our DTS 3161 (NEMA Type 3R/4) outdoor series cooling unit utilizes a long internal air path to capture heat above the components and provide cool air below. Available in 3 models; DTS 3141 (NEMA Type 12) for indoor use, DTS 3161 (NEMA Type 3R/4) designed for outdoor use, and the stainless steel DTS 3181 (NEMA Type 4/4x) designed for washdown applications. Closed loop design prevents external contaminants from entering the cabinet by isolating ambient air from internally conditioned air. Thermal overload protection ensures the longevity of the compressor by incorporating temperature switches in both compressor and fan motors, automatically shutting down the unit to prevent damage from excessive temperatures. Thermal expansion valve optimizes refrigerant flow for efficient performance across all temperatures. High-pressure cutoff switch ensures pressure overload protection by shutting down the compressor in case of excessive pressure in the refrigeration circuit. High ambient performance in our NEMA Type 12 and outdoor units for environments that require cooling where the maximum ambient temperature is 131 F. Hermetically sealed compressor never needs recharging, maintaining 100% cooling efficiency. ERP efficiency certified components compliant with Kyoto Protocol's CO reduction standards and ERP Directive for fan efficiency ratings. Rugged Design is well. suited for manufacturing environments and can be easily painted to match enclosures or machines. Environmentally Friendlier R134a refrigerant for easier service and minimal environmental impact. The DTS 3161 NEMA 3R and DTS 3181 NEMA 4/4X cooling units feature a special corrosive protectant coating on ambient. side pipes and coils, ensuring maximum protection against saltwater, sour gas, and other corrosive substances. High airflow backward curve impeller fan with a long-lasting, single-bearing design outperforms standard two-bearing blowers, boasting nearly double the lifespan. The DTS 3161 NEMA 3R and DTS 3181 NEMA 4/4X cooling units are uniquely designed to be self. protected in outdoor and washdown environments. An example of this is the location of our control electronics within our dry, cool interior circuit. Maintenance free, wide fin filter. less design is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency. Active condensate collection pan, eliminating the need for drain tubes and buckets. The heater activates only when required to conserve power.

SPECIFICATIONS

Color      :      Light Grey
Cooling Capacity      :      3000-4000 Btu/hr
Dimensions      :      29.5 H x 15.6 W x 9.3 D in
Frequency Rating      :      50/60 Hz
NEMA Rating      :      Type 3R/4
Series      :      DTS 3161
Type      :      Outdoor Enclosure Cooling Unit
Voltage Rating      :      460 V

DOCUMENTS

  • pdf
    Cut-out     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Cut-out_DTS_31X1.pdf
  • pdf
    Drawing     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Drawing_DTS_3161-81.pdf
  • pdf
    Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Manual_DTS_3xxx.pdf
  • pdf
    Datasheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Technical_Data_DTS_3141-61-81_400V-460V.pdf
