- Pfannenberg 11681152055
11681152055

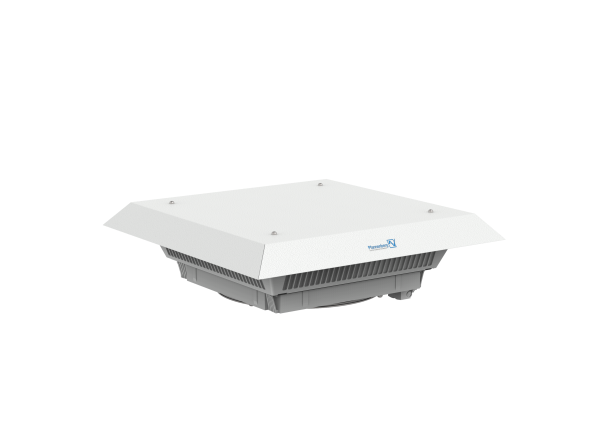

PTF 61000 115V 441 cfm Type 12 Filterfan (Light Gray)
- CP#:
- Item#: 116 8115 2055
- Mfr#: 11681152055
- 3 performance classes (441 CFM) for one mounting cut
- free mounting.
- Optimal air passage and distribution of temperature due to positioning of the fan.
- Natural convection is supported.
- Reliable prevention of hotspots.
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The top filterfans and top exhaust filters from Pfannenberg provide a cost. effective and energy efficient solution for the cooling of electrical cabinets, if there is no space for the filterfan on the door or the side walls. The air is drawn evenly from every corner of the cabinet. Thus, hotspots can be prevented reliably. The front cover of this product has the color RAL7035 (Light Gray). NEMA rated Type 12 and delivered with filter medias in IP54. 3 performance classes (441 CFM) for one mounting cut. out. Tool. free mounting. Optimal air passage and distribution of temperature due to positioning of the fan. Natural convection is supported. Reliable prevention of hotspots.
SPECIFICATIONS
| Series | : | PTF 61000 |
| Voltage Rating | : | 115 V |
| Weight | : | 9.5 lb |
| Color | : | Light Gray |
| Connection Type | : | terminal strip |
| Bearing Type | : | ball bearing |
| Power Consumption | : | 172 W |
| Dimensions | : | 18.5 H x 18.5 W x 6 D in |
| NEMA Rating | : | Type 12 |
| Unimpeded Airflow | : | 441 cfm |
| Airflow Rate | : | 441 cfm |
| Filter Efficiency | : | 0.81 |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Manual_PTF_PTFA_6_4th.pdf
