11643154050

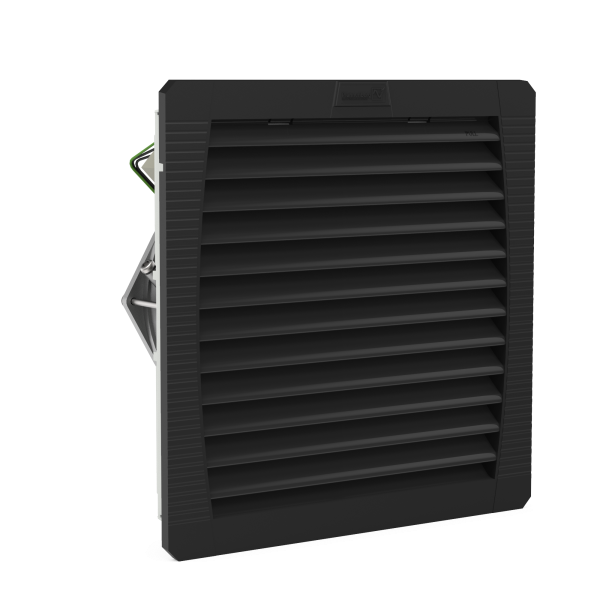

PF 43000 115V 156 cfm Type 12 Filterfan (Black)
- CP#:
- Item#: 116 4315 4050
- Mfr#: 11643154050
- Uniquely high air flow due to optimized louvre design.
- NEMA Type 12, closed frame prevents unfiltered air from penetrating.
- Includes G4 filter class fluted material filter media that can be replaced easily and in seconds due to the optimized front cover.
- Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold.
- Poured foam seal facilitates the installation.
- Flat shape and neutral design make a perfect integration into existing machines possible.
- The filterfans can be retrofitted in most applications because the mounting cut-outs are compatible.
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 4th generation Pfannenberg filterfans is the culmination of 60 years experience in thermal management. Using filterfans is the most efficient and cost. effective way to remove heat from the electrical cabinet at ambient temperatures below target internal. The front cover of this product has the color RAL9011 (Black). The advantages of the series at a glance:. High air flow (155 CFM) in small package with low energy consumption. Uniquely high air flow due to optimized louvre design. NEMA Type 12, closed frame prevents unfiltered air from penetrating. Includes G4 filter class fluted material filter media that can be replaced easily and in seconds due to the optimized front cover. Patented tool-free 4-corner fastening system enables installation in seconds and guarantees a secure hold. Poured foam seal facilitates the installation. Flat shape and neutral design make a perfect integration into existing machines possible. The filterfans can be retrofitted in most applications because the mounting cut. outs are compatible.
SPECIFICATIONS
| Series | : | PF 43000 |
| Voltage Rating | : | 115 V |
| Weight | : | 3.7 lb |
| Color | : | Black |
| Noise Level | : | 46 dB(A) dBA |
| Connection Type | : | spring-type terminal |
| Bearing Type | : | ball bearing |
| Power Consumption | : | 40 W |
| Dimensions | : | 9.9 H x 9.9 W x 4.7 D in |
| NEMA Rating | : | Type 12 |
| Unimpeded Airflow | : | 156 cfm |
| Airflow Rate | : | 156 cfm |
| Filter Efficiency | : | 0.91 |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/PFANNBRG_Manual_PF_PFA_1x.000-6x.000.pdf
