UELPL-3/4

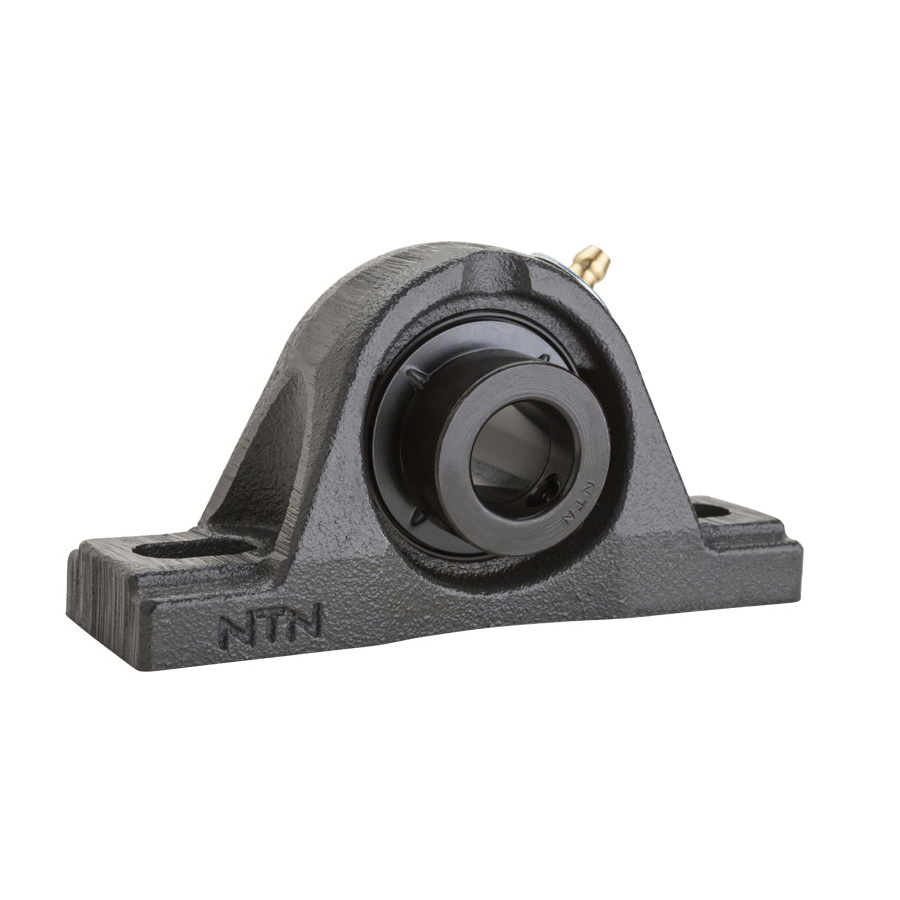

NTN UELPL-3/4 1-Piece Light Duty Low Base Pillow Block Ball Bearing Unit, 19.05 mm Dia Bore, 96 mm L Bolt Center-to-Center, 31.8 mm Base to Bore Centerline, 127 mm OAL x 64.3 mm OAH
- CP#:
- Item#: UELPL-3/4
- Mfr#: UELPL-3/4
- UPC: 4547359235678
- Relubricatable
- Nitrile rubber seal
- Open end
- Low center height
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

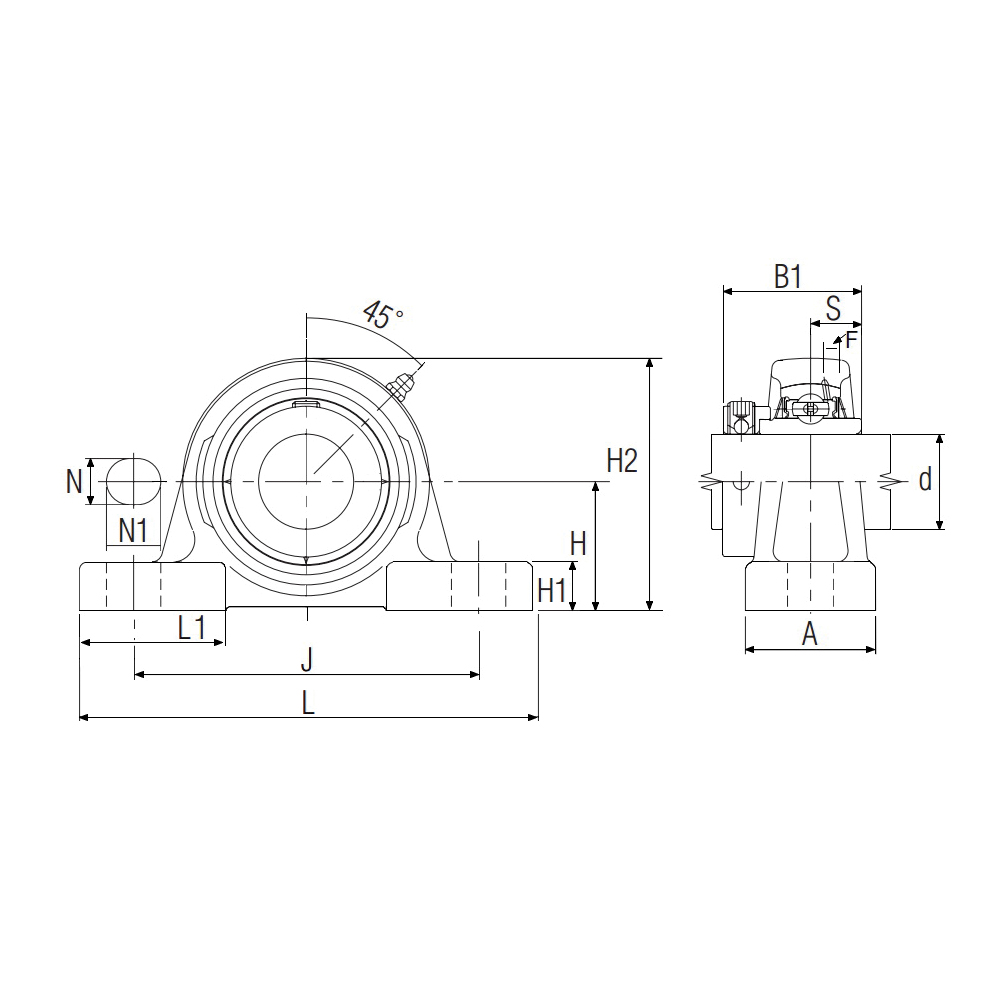

NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty Low Base, Series: UELPL, 19.05 mm Bore, 96 mm Bolt Center-to-Center Length, 31.8 mm Base to Bore Centerline, 127 mm Overall Length, 38.1 mm Overall Width, 64.3 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 38.1 mm Base Width, Eccentric Locking Collar Locking Device, Contact Seal, Non-Expansion (Fixed), 12800 N Dynamic/6650 N Static Load, -40 to 120 deg C, 6700 rpm Maximum, Cast Iron, Black Oxide
SPECIFICATIONS
| Base Width | : | 38.1 mm |
| Base to Bore Centerline | : | 31.8 mm |
| Series | : | UELPL |
| Bolt Center-to-Center Length | : | 96 mm |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Eccentric Locking Collar |
| Finish | : | Black Oxide |
| Overall Length | : | 127 mm |
| Load Capacity | : | 12800 N Dynamic/6650 N Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 6700 rpm |
| Overall Width | : | 38.1 mm |
| Overall Height | : | 64.3 mm |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
