UELFU-1.3/8

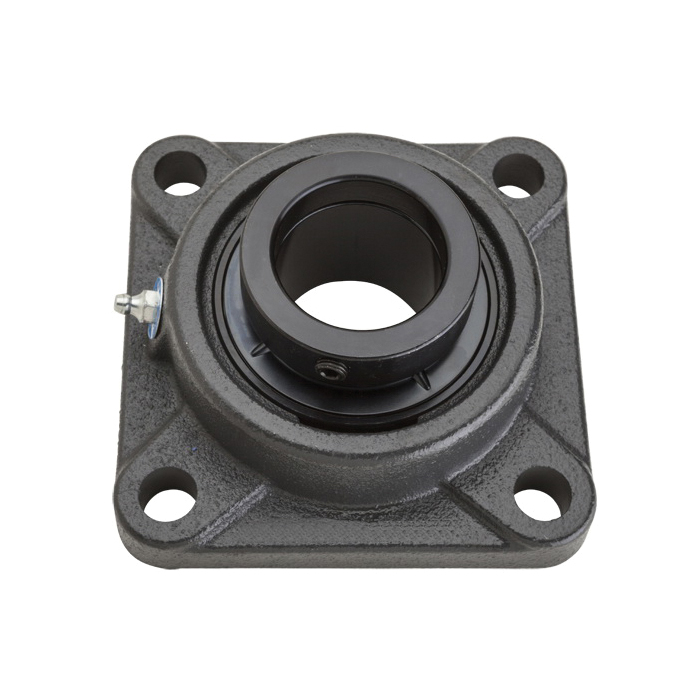

NTN UELFU-1.3/8 1-Piece Light Duty Ball Bearing Unit, 34.925 mm Dia Bore, 92.1 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 118.3 mm OAL/Dia
- CP#:
- Item#: UELFU-1.3/8
- Mfr#: UELFU-1.3/8
- UPC: 4547359234602
- Relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UELFU, 34.925 mm Bore, 92.1 mm Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 118.3 mm Overall Length/Diameter, 53.2 mm Overall Depth, 118.3 mm Overall Height, Eccentric Locking Collar Locking Device, Nitrile Rubber Seal, 25700 N Dynamic/15300 N Static Load, 4200 rpm Maximum, -40 to 120 deg C, Black Oxide
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 92.1 mm |
| Series | : | UELFU |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Eccentric Locking Collar |
| Load Capacity | : | 25700 N Dynamic/15300 N Static |
| Maximum Speed | : | 4200 rpm |
| Overall Depth | : | 53.2 mm |
| Overall Height | : | 118.3 mm |
| Overall Length/Diameter | : | 118.3 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
