UCPL-1.5/16

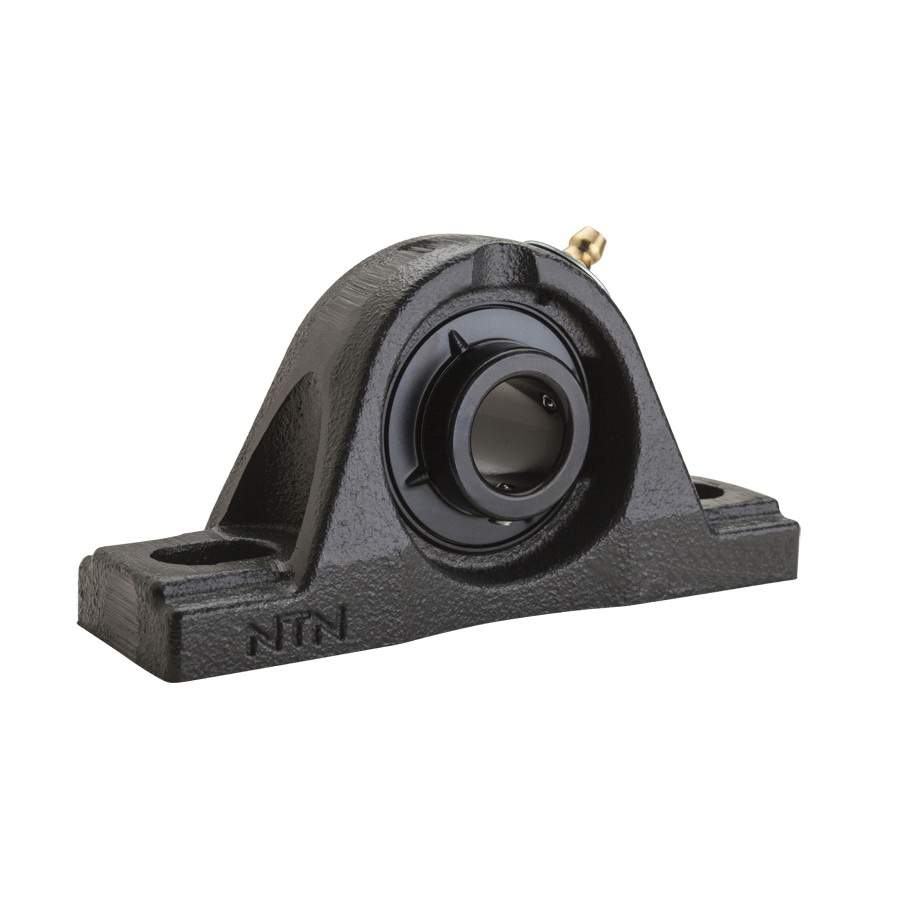

NTN UCPL-1.5/16 1-Piece Light Duty Low Base Pillow Block Ball Bearing Unit, 33.338 mm Dia Bore, 130.2 mm L Bolt Center-to-Center, 46 mm Base to Bore Centerline, 166.7 mm OAL x 91.3 mm OAH
- CP#:
- Item#: UCPL-1.5/16
- Mfr#: UCPL-1.5/16
- UPC: 4547359223200
- Relubricatable
- Nitrile rubber seal
- Open end
- Low center height
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

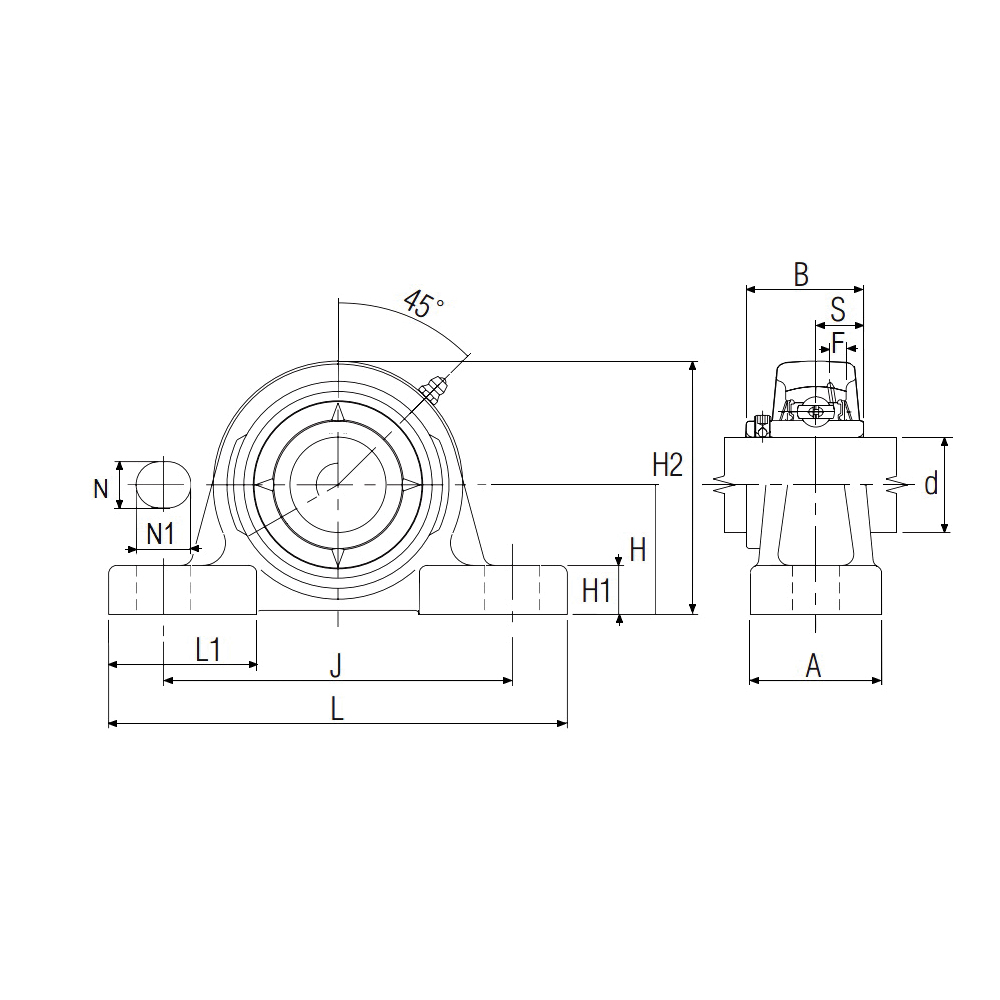

NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty Low Base, Series: UCPL, 33.338 mm Bore, 130.2 mm Bolt Center-to-Center Length, 46 mm Base to Bore Centerline, 166.7 mm Overall Length, 47.6 mm Overall Width, 91.3 mm Overall Height, 47.6 mm Base Width, Set Screw Locking Device, Contact Seal, 25700 N Dynamic/15300 N Static Load, -40 to 120 deg C, 4200 rpm Maximum, Cast Iron, Black Oxide
SPECIFICATIONS
| Base Width | : | 47.6 mm |
| Base to Bore Centerline | : | 46 mm |
| Series | : | UCPL |
| Bolt Center-to-Center Length | : | 130.2 mm |
| Locking Device | : | Set Screw |
| Finish | : | Black Oxide |
| Overall Length | : | 166.7 mm |
| Load Capacity | : | 25700 N Dynamic/15300 N Static |
| Material | : | Cast Iron |
| Maximum Speed | : | 4200 rpm |
| Overall Width | : | 47.6 mm |
| Overall Height | : | 91.3 mm |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
