UCP-1/2

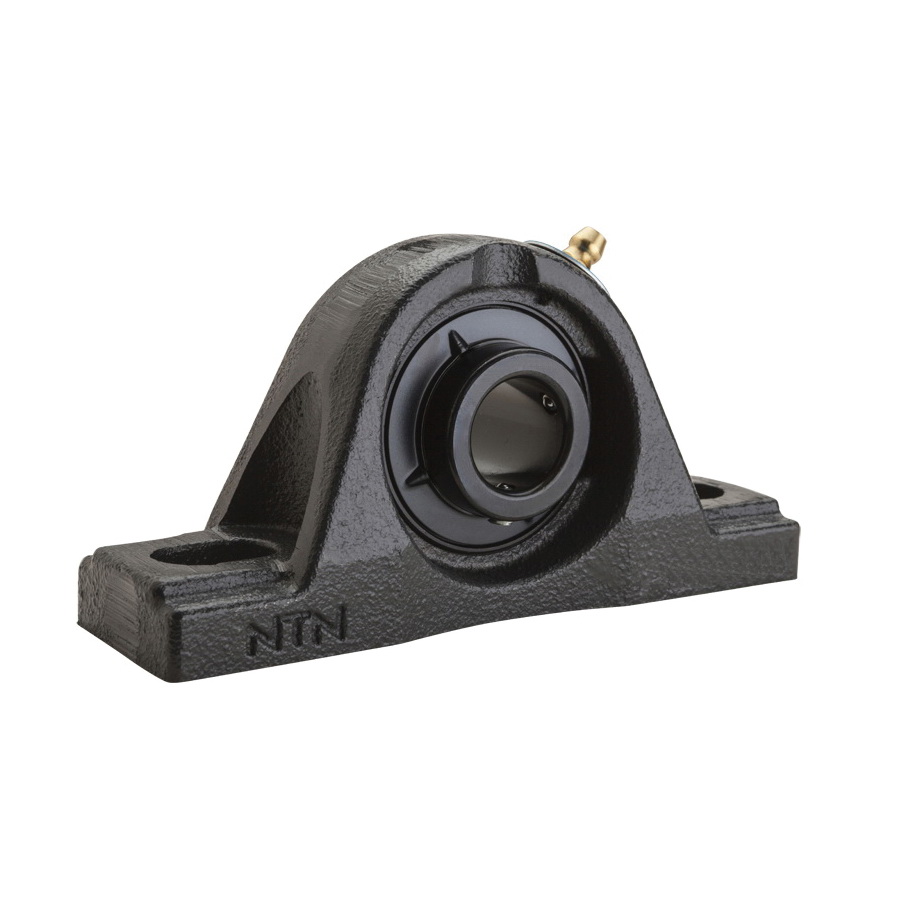

NTN UCP-1/2 1-Piece Light Duty High Base Pillow Block Ball Bearing Unit, 12.7 mm Dia Bore, 92.1 mm L Bolt Center-to-Center, 30.2 mm Base to Bore Centerline, 127 mm OAL x 61.9 mm OAH
- CP#:
- Item#: UCP-1/2
- Mfr#: UCP-1/2
- UPC: 4547359222296
- Relubricatable
- Nitrile rubber seal
- Open end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

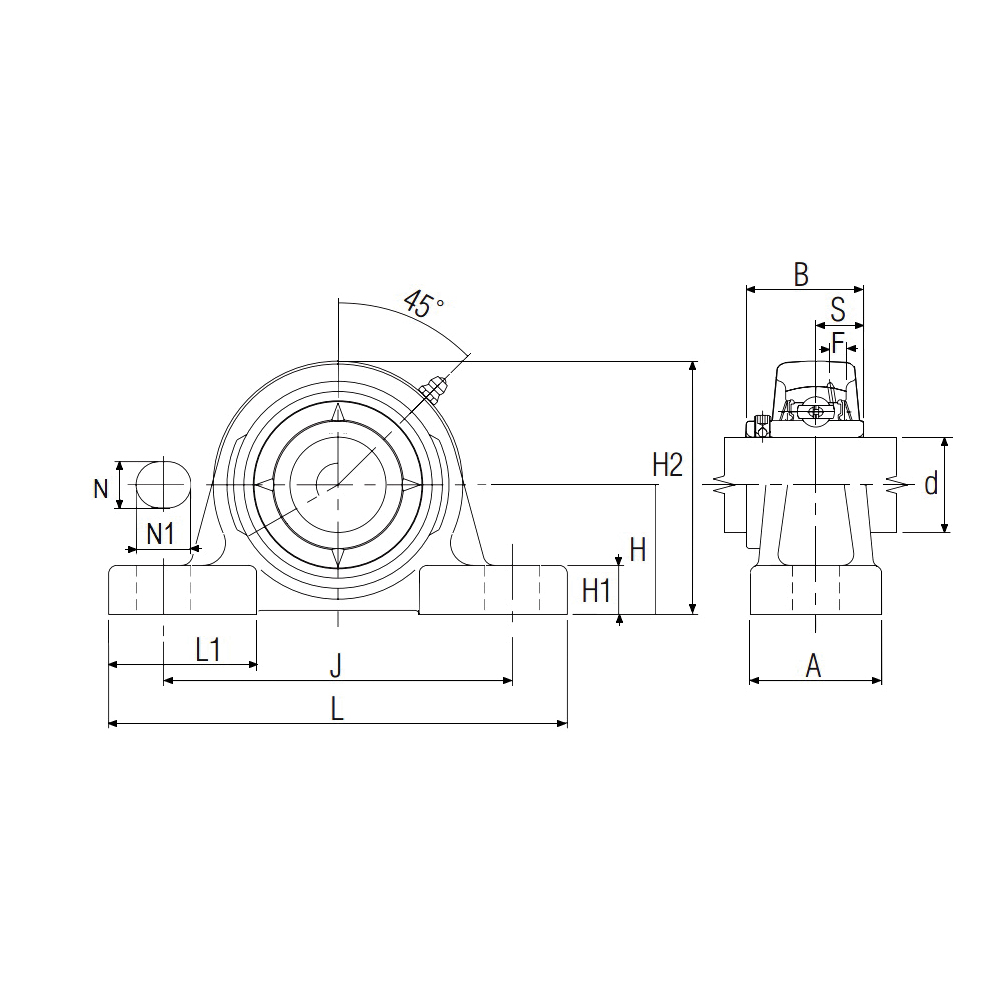

NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty High Base, Series: UCP, 12.7 mm Bore, 92.1 mm Bolt Center-to-Center Length, 30.2 mm Base to Bore Centerline, 127 mm Overall Length, 38.1 mm Overall Width, 61.9 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 38.1 mm Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 9600 N Dynamic/4600 N Static Load, -40 to 120 deg C, Cast Iron, Black Oxide
SPECIFICATIONS
| Base Width | : | 38.1 mm |
| Base to Bore Centerline | : | 30.2 mm |
| Series | : | UCP |
| Bolt Center-to-Center Length | : | 92.1 mm |
| Mounting Type | : | Two-Bolt Base |
| Expansion Type | : | Non-Expansion (Fixed) |
| Locking Device | : | Set Screw |
| Finish | : | Black Oxide |
| Overall Length | : | 127 mm |
| Load Capacity | : | 9600 N Dynamic/4600 N Static |
| Material | : | Cast Iron |
| Overall Width | : | 38.1 mm |
| Overall Height | : | 61.9 mm |
| Seal Type | : | Contact |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
