UCFUX-1.11/16

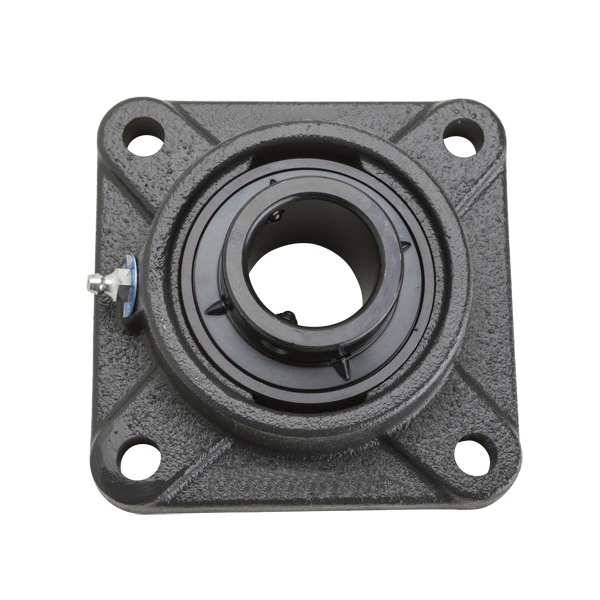

NTN UCFUX-1.11/16 1-Piece Medium Duty Ball Bearing Unit, 42.863 mm Dia Bore, 111.1 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 143.7 mm OAL/Dia
- CP#:
- Item#: UCFUX-1.11/16
- Mfr#: UCFUX-1.11/16
- UPC: 4547359597875
- Relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Medium Duty, Series: UCFUX, 42.863 mm Bore, 111.1 mm Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 143.7 mm Overall Length/Diameter, 60.7 mm Overall Depth, 143.7 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 35000 N Dynamic/23200 N Static Load, 3050 rpm Maximum, -40 to 120 deg C, Black Oxide
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 111.1 mm |
| Series | : | UCFUX |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 35000 N Dynamic/23200 N Static |
| Maximum Speed | : | 3050 rpm |
| Overall Depth | : | 60.7 mm |
| Overall Height | : | 143.7 mm |
| Overall Length/Diameter | : | 143.7 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
