UCFU-2

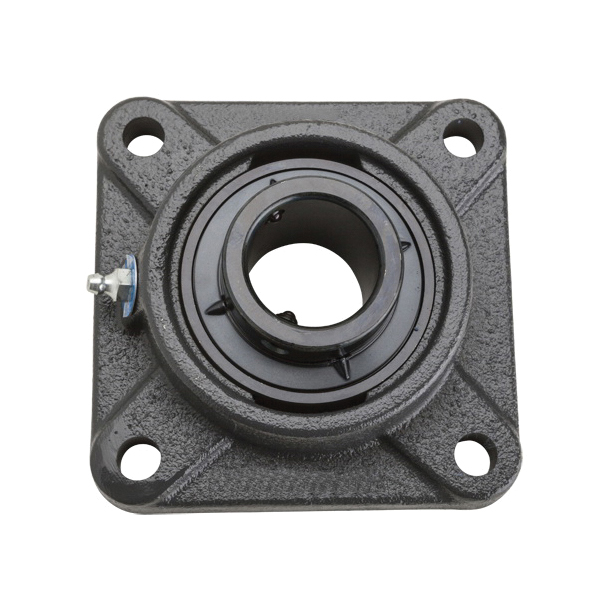

NTN UCFU-2 1-Piece Light Duty Ball Bearing Unit, 50.8 mm Dia Bore, 130.2 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 162.7 mm OAL/Dia
- CP#:
- Item#: UCFU-2
- Mfr#: UCFU-2
- UPC: 4547359217308
- Relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UCFU, 50.8 mm Bore, 130.2 mm Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 162.7 mm Overall Length/Diameter, 64.3 mm Overall Depth, 162.7 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 43500 N Dynamic/29200 N Static Load, 2900 rpm Maximum, -40 to 120 deg C, Black Oxide
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 130.2 mm |
| Series | : | UCFU |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Set Screw |
| Load Capacity | : | 43500 N Dynamic/29200 N Static |
| Maximum Speed | : | 2900 rpm |
| Overall Depth | : | 64.3 mm |
| Overall Height | : | 162.7 mm |
| Overall Length/Diameter | : | 162.7 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
