UCFLUX-1.3/16

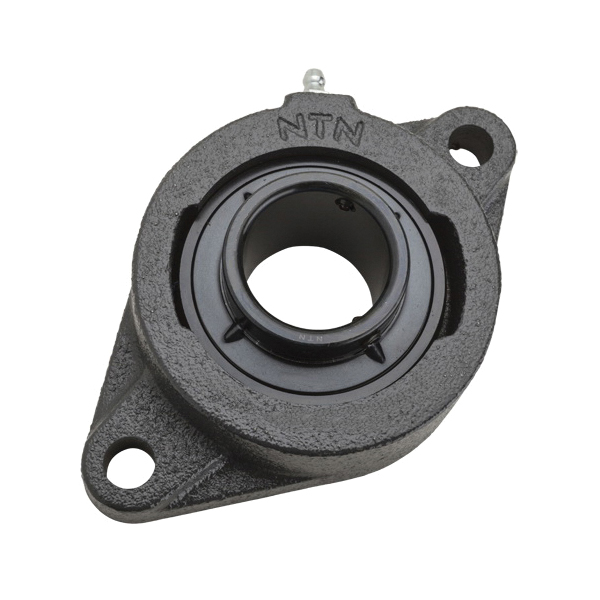

NTN UCFLUX-1.3/16 1-Piece Medium Duty Ball Bearing Unit, 30.163 mm Dia Bore, 130.2 mm L Bolt Center-to-Center, 2-Bolt Rhombus Flange Mount, 156.4 mm OAL/Dia
- CP#:
- Item#: UCFLUX-1.3/16
- Mfr#: UCFLUX-1.3/16
- UPC: 4547359597790
- Relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

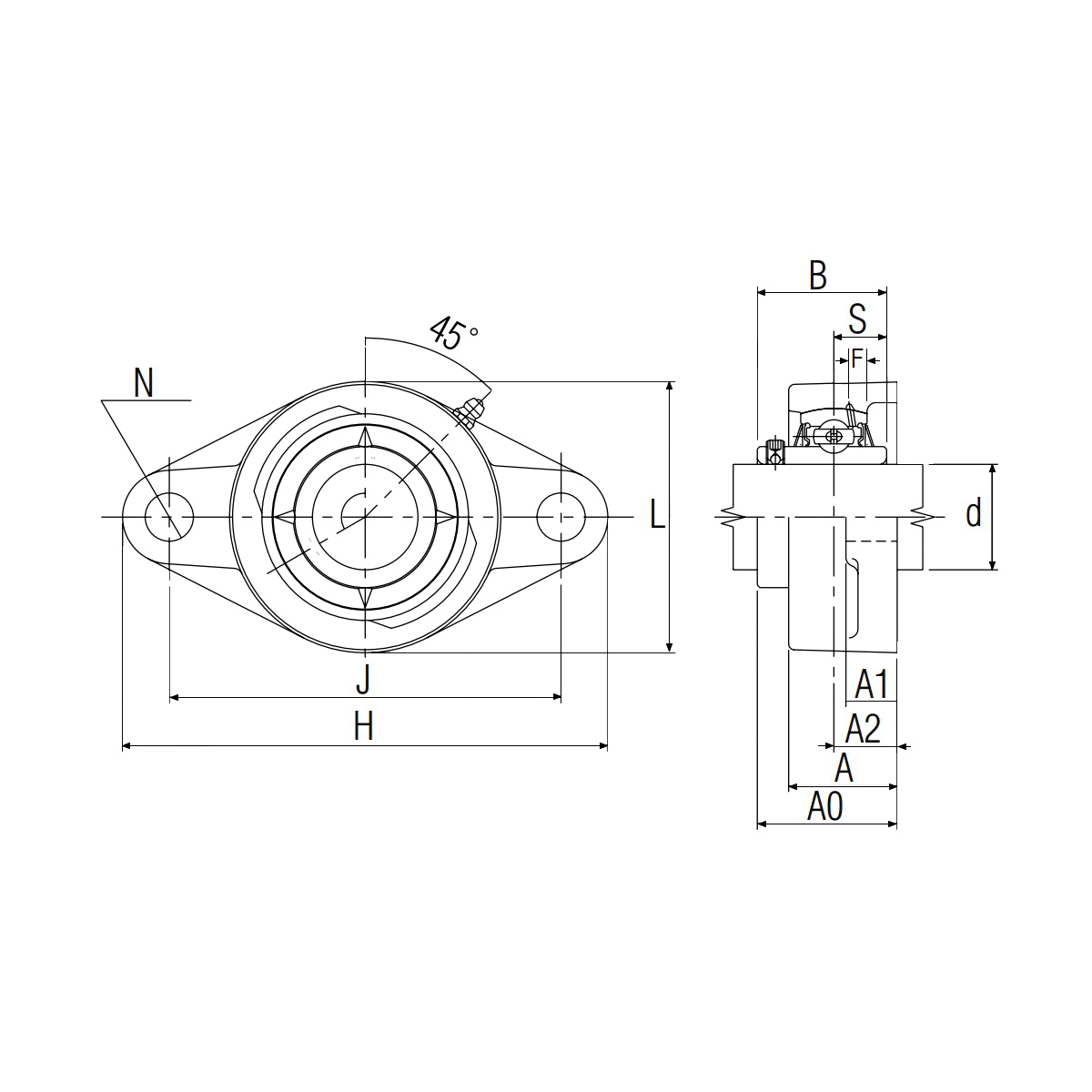

NTN Ball Bearing Unit, 1-Piece Medium Duty, Series: UCFLUX, 30.163 mm Bore, 130.2 mm Bolt Center-to-Center Length, 2-Bolt Rhombus Flange Mounting, 156.4 mm Overall Length/Diameter, 46.4 mm Overall Depth, 96 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 25700 N Dynamic/15300 N Static Load, 4000 rpm Maximum, -40 to 120 deg C, Black Oxide
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 130.2 mm |
| Series | : | UCFLUX |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Locking Device | : | Set Screw |
| Load Capacity | : | 25700 N Dynamic/15300 N Static |
| Maximum Speed | : | 4000 rpm |
| Overall Depth | : | 46.4 mm |
| Overall Height | : | 96 mm |
| Overall Length/Diameter | : | 156.4 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
