UCFL205

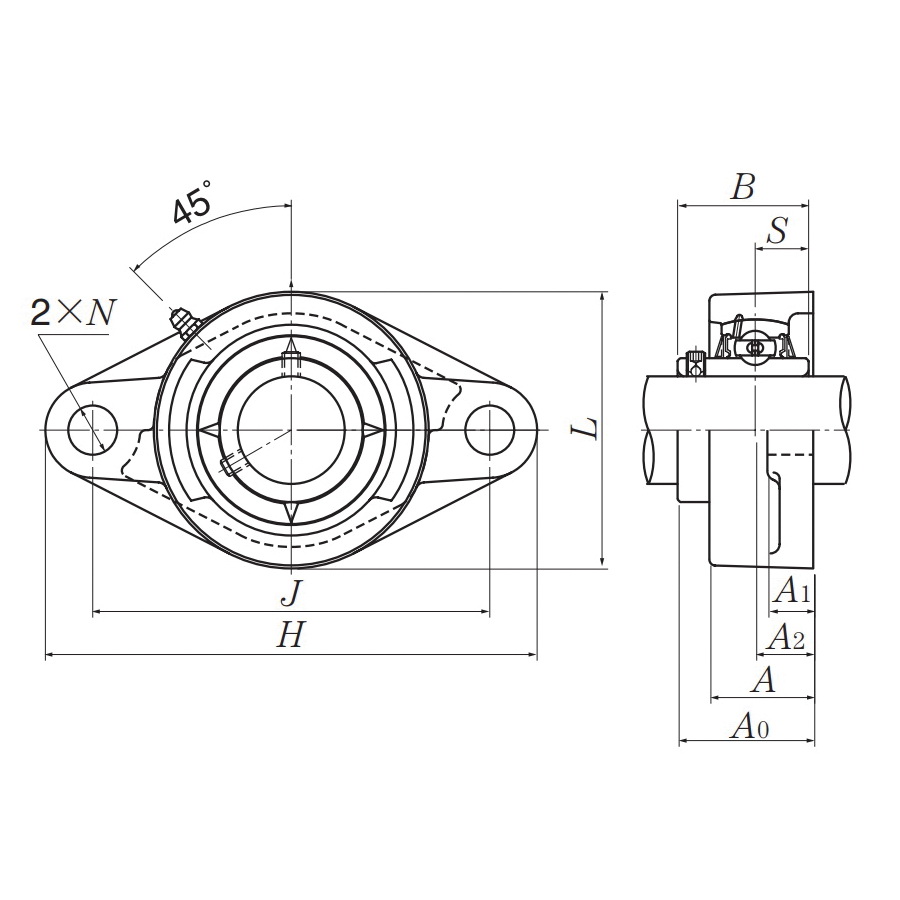

NTN UCFL205 1-Piece Light Duty Ball Bearing Unit, 25 mm Dia Bore, 99 mm L Bolt Center-to-Center, 99 mm Dia Bolt Circle, 2-Bolt Rhombus Flange Mount, 130 mm OAL/Dia
- CP#:
- Item#: UCFL205#SNR
- Mfr#: UCFL205
- UPC: 4547359215199
- Non-relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UCFL2, 25 mm Bore, 99 mm Bolt Center-to-Center Length, 99 mm Diameter Bolt Circle, 2-Bolt Rhombus Flange Mounting, 130 mm Overall Length/Diameter, 35.8 mm Overall Depth, 68 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 14000 N Dynamic/7850 N Static Load, 5900 rpm Maximum, -40 to 120 deg C
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 99 mm |
| Series | : | UCFL2 |
| Bolt Circle Diameter | : | 99 mm |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Locking Device | : | Set Screw |
| Load Capacity | : | 14000 N Dynamic/7850 N Static |
| Maximum Speed | : | 5900 rpm |
| Overall Depth | : | 35.8 mm |
| Overall Height | : | 68 mm |
| Overall Length/Diameter | : | 130 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
