SL04-5028NR

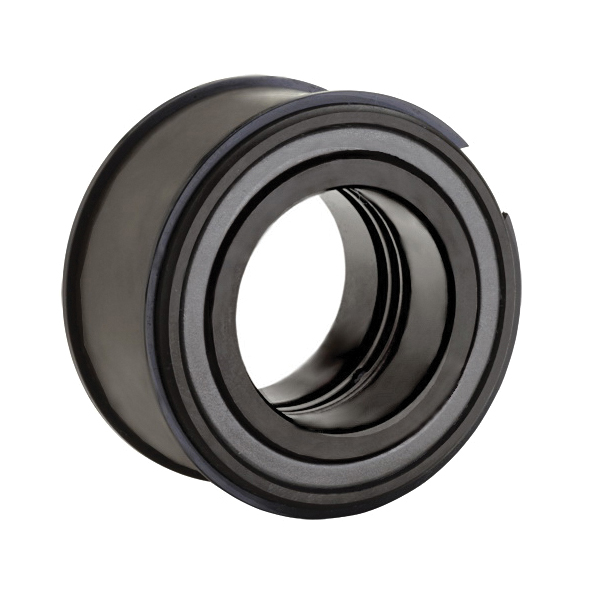

NTN SL04-5028NR Large Cylindrical Roller Bearing, 140 mm Dia Bore, 210 mm OD, 2 Rows, 95 mm W, 1120000 N Load
- CP#:
- Item#: SL04-5028NR
- Mfr#: SL04-5028NR
- UPC: 4547359186000
- Model SL04 only with the fixed side
- Since the inner ring is split in the circumference direction using a special method and fixed as a unit after mounting rollers
- The bearing side face should be securely fixed by using the shaft or housing shoulder in the axial direction
- Model SL04 can support radial and axial loads in either directions
- A sealed bearing prelubricated with grease, the outer ring is fitted with a locating snap ring, making it easy to handle and appropriate for sheaves and other applications
- Surface coating is added for rust prevention
- ISO class 0 tolerance rating
- CN radial clearance
- Round bore
- 600000 N dynamic/1120000 N static
- Without oil hole
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The rollers of the cylindrical roller bearings make line contact with the raceways, these bearings can support heavy radial loads and are suitable for high speed operation. Assembly and disassembly are comparatively easy even if the inner or outer ring requires a shrink fit, as the bearing is a separation type. Cylindrical roller bearings are classified as single row, double row and four row type, according to how many rollers are used, although designed as a thin wall type, the SL Model double row cylindrical roller bearing can support enormous radial and impact loads.

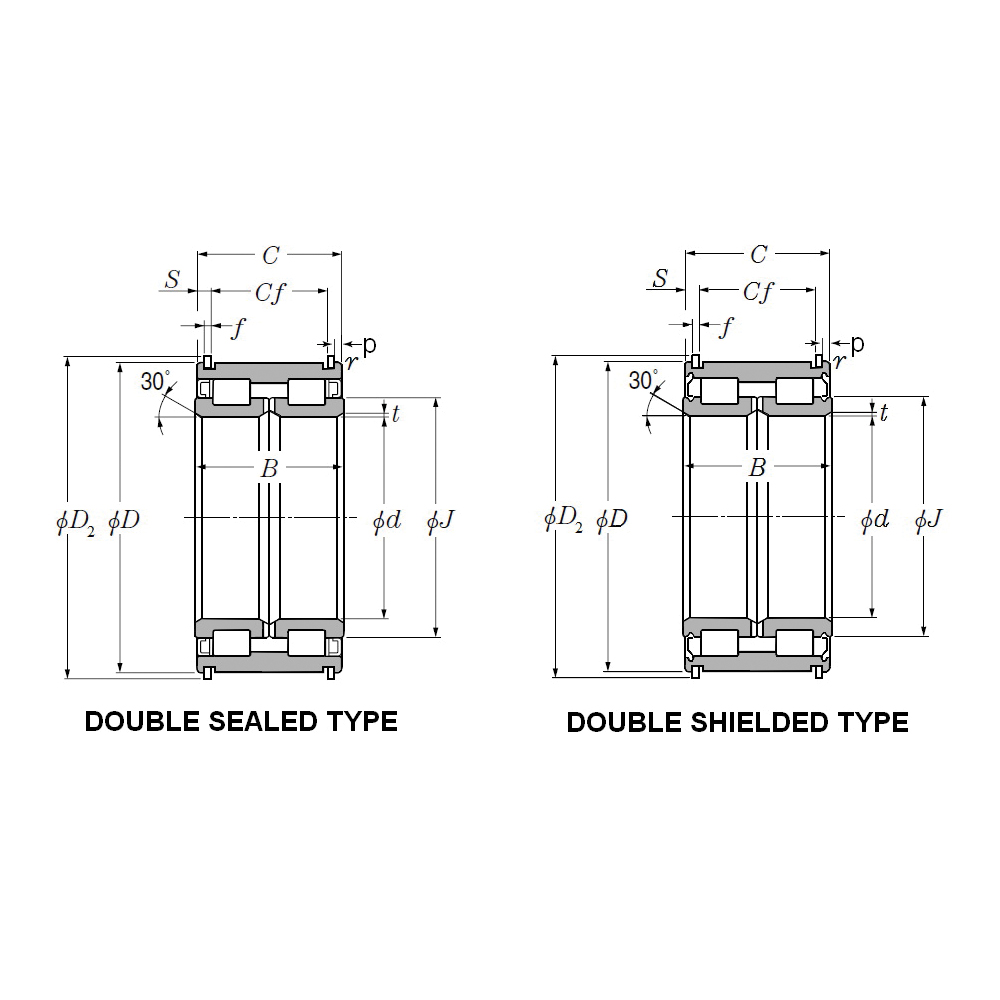

NTN Cylindrical Roller Bearing, Large, Series: SL04, 140 mm Bore, 210 mm OD, 2 Rows, 95 mm Width, Double Shield Closure, 1120000 N Load, Hardened Alloy Steel Bearing, 710 rpm Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | SL04 |
| Bearing Material | : | Hardened Alloy Steel |
| Load Capacity | : | 1120000 N |
| Maximum Speed | : | 710 rpm |
| Outside Diameter | : | 210 mm |
| Number of Rows | : | 2 |
| Width | : | 95 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf -
VIDEO LINK
https://youtu.be/4rXPAd9xD3w
