SL01-4920

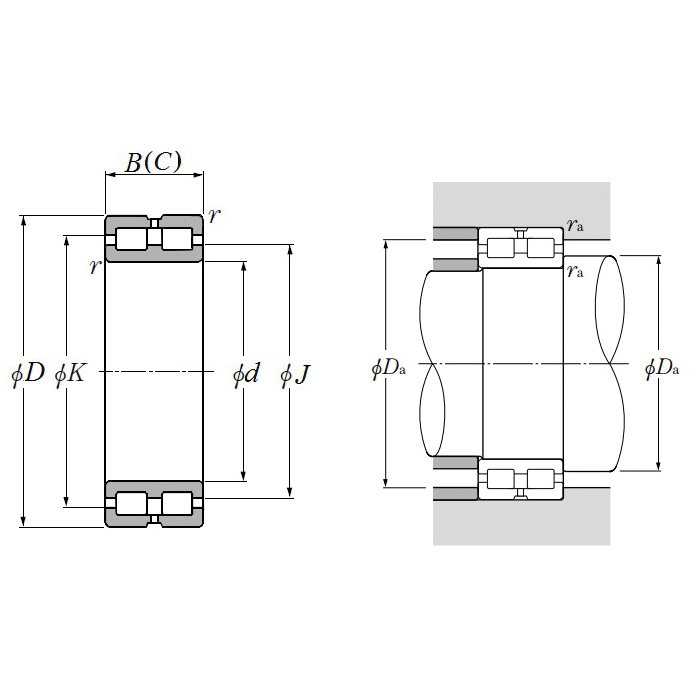

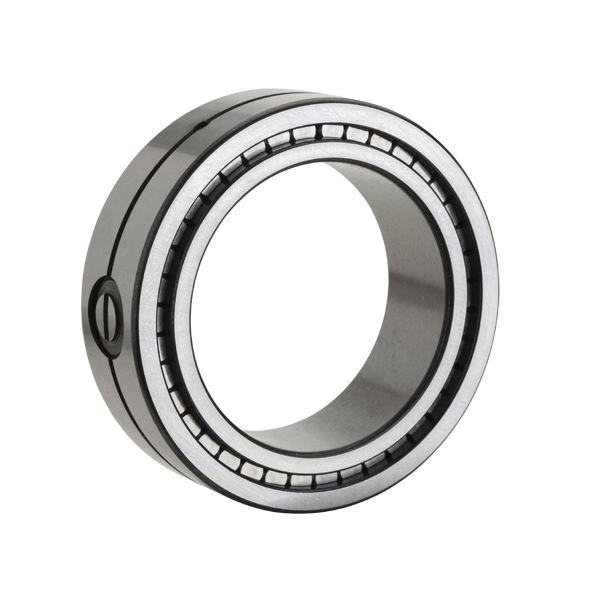

NTN SL01-4920 Cylindrical Roller Bearing With Oil Hole, 100 mm Dia Bore, 140 mm OD, 2 Rows, 40 mm W, 400000 N Load
- CP#:
- Item#: SL01-4920
- Mfr#: SL01-4920
- UPC: 4547359184525
- Fixed end is model SL01
- Since the outer ring is split in the circumference direction using a special method and fixed as a unit after mounting rollers
- The bearing side face should be securely fixed using the shaft or housing shoulder in the axial direction
- Model SL01 can support axial loads from both directions via rollers
- ISO class 0 tolerance rating
- CN radial clearance
- Round bore
- 194000 N dynamic/400000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The rollers of the cylindrical roller bearings make line contact with the raceways, these bearings can support heavy radial loads and are suitable for high speed operation. Assembly and disassembly are comparatively easy even if the inner or outer ring requires a shrink fit, as the bearing is a separation type. Cylindrical roller bearings are classified as single row, double row and four row type, according to how many rollers are used, although designed as a thin wall type, the SL Model double row cylindrical roller bearing can support enormous radial and impact loads.
NTN Cylindrical Roller Bearing, Series: SL01, 100 mm Bore Dia, 140 mm Outside Dia, 2 Rows, 40 mm W, Open Closure, 400000 N, Hardened Alloy Steel Bearing, 1000 rpm Grease/2000 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | SL01 |
| Bearing Material | : | Hardened Alloy Steel |
| Load Capacity | : | 400000 N |
| Maximum Speed | : | 1000 rpm Grease/2000 rpm Oil |
| Outside Diameter | : | 140 mm |
| Number of Rows | : | 2 |
| Width | : | 40 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf -
