QJ311X1CS155

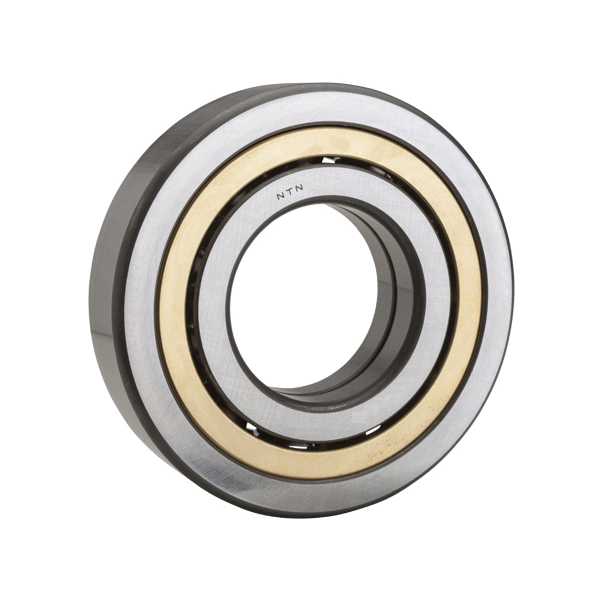

NTN QJ311X1CS155 Round Bore Medium Four-Point Angular Contact Ball Bearing, 55 mm Dia Bore, 120 mm OD, 1 Row, 29 mm W, 30 deg, 170000 N Load
- CP#:
- Item#: QJ311X1CS155
- Mfr#: QJ311X1CS155
- UPC: 4547359495355
- CS155 special radial clearance
- ISO class 0 precision rating
- Special chamfer
- 106000 N dynamic/170000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Four-Point Angular Contact Ball Bearing, Round Bore Medium, Series: QJ3, 55 mm Bore Dia, 120 mm Outside Dia, 1 Row, 29 mm W, 30 deg Contact, Open Closure, 170000 N, High Carbon Chrome Steel Bearing, Machined Brass Cage, 4600 rpm Grease/6100 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | QJ3 |
| Bearing Material | : | High Carbon Chrome Steel |
| Contact Angle | : | 30 deg |
| Load Capacity | : | 170000 N |
| Maximum Speed | : | 4600 rpm Grease/6100 rpm Oil |
| Outside Diameter | : | 120 mm |
| Number of Rows | : | 1 |
| Width | : | 29 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
