NU222EMC3
NTN NU222EMC3 Round Bore Separable Cylindrical Roller Bearing, 110 mm Dia Bore, 200 mm OD, 1 Row, 38 mm W, 293 kN Dynamic/365 kN Static Load
- CP#:
- Item#: NU222EMJ30
- Mfr#: NU222EMC3
- Without oil hole
- Plain inner ring, outer ring with two ribs
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

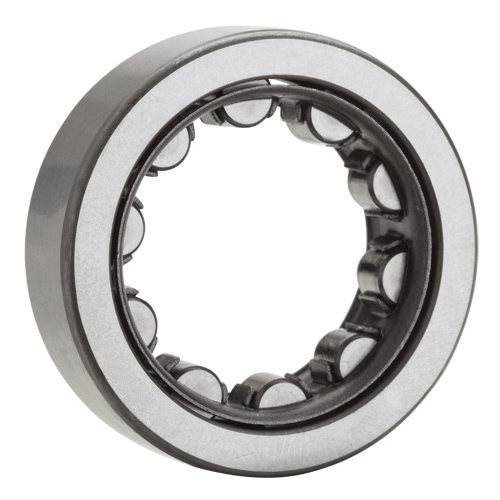

These bearings use cylindrical rollers as the rolling elements and have a high load capacity. The rollers are guided by the ribs of the inner or outer ring. The inner and outer rings can be separated to facilitate assembly, since both inner and outer ring are normally press fitted to the shaft and housing, respectively. The rings can move freely in the axial direction on those with no inner or outer ring ribs, making cylindrical roller bearings ideal for applications that experience thermal expansion of the shaft, such as electric motors.
NTN Cylindrical Roller Bearing, Round Bore Separable, Series: NU Series, 110 mm Bore Dia, 200 mm Outside Dia, 1 Row, 38 mm Width, Open Closure, 293 kN Dynamic/365 kN Static, Hardened Alloy Steel Bearing, Machined Brass Cage, 3100 rpm Grease/3700 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | NU Series |
| Bearing Material | : | Hardened Alloy Steel |
| Load Capacity | : | 293 kN Dynamic/365 kN Static |
| Maximum Speed | : | 3100 rpm Grease/3700 rpm Oil |
| Outside Diameter | : | 200 mm |
| Number of Rows | : | 1 |
| Width | : | 38 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/NTN_3205B_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1111/NTN_NU222EMC3_Specification_Sheet.pdf
