NN3022C1NAP5

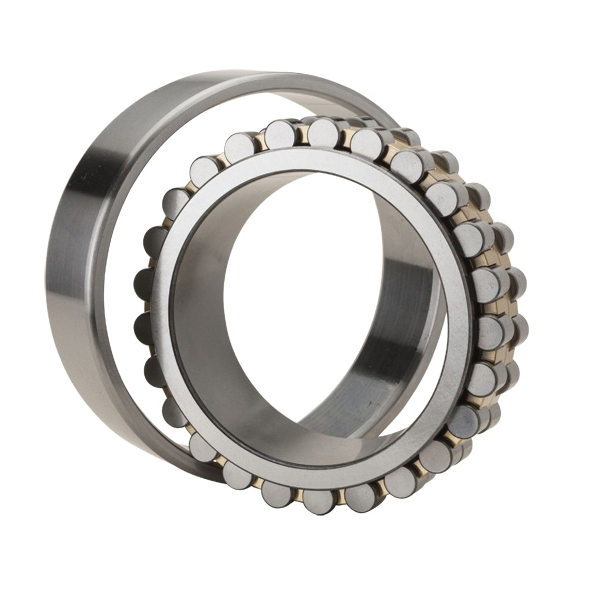

NTN NN3022C1NAP5 Precision Cylindrical Roller Bearings, 110 mm Dia Bore, 170 mm OD, 2 Rows, 45 mm W, 375000 N Load
- CP#:
- Item#: NN3022C1NAP5
- Mfr#: NN3022C1NAP5
- UPC: 4547359131864
- ISO class 5 precision rating
- Without oil hole
- C1 radial clearance less than C2
- 229000 N dynamic/375000 N static
- High strength 2-piece machined brass cage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical roller bearing, the rollers and raceways are in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation. A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or single row configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.
NTN Precision Cylindrical Roller Bearings, Series: NN3, 110 mm Bore Dia, 170 mm Outside Dia, 2 Rows, 45 mm W, Open Closure, 375000 N, Hardened Alloy Steel Bearing, Machined Brass Cage, 3600 rpm Grease/4300 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | NN3 |
| Bearing Material | : | Hardened Alloy Steel |
| Load Capacity | : | 375000 N |
| Maximum Speed | : | 3600 rpm Grease/4300 rpm Oil |
| Outside Diameter | : | 170 mm |
| Number of Rows | : | 2 |
| Width | : | 45 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/NTN_16001_Catalog.pdf
