NN3012KD1NAP4

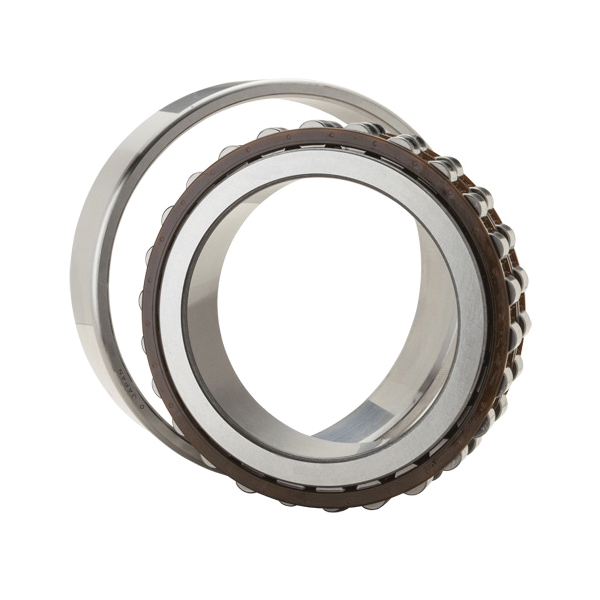

NTN NN3012KD1NAP4 Precision Cylindrical Roller Bearings With Oil Hole, 60 mm Dia Bore, 95 mm OD, 2 Rows, 26 mm W, 102000 N Load
- CP#:
- Item#: NN3012KD1C1NAP4
- Mfr#: NN3012KD1NAP4
- ISO class 4 precision rating
- 1:12 tapered bore
- CN radial clearance
- 71000 N dynamic/102000 N static
- High strength 2-piece machined brass cage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical roller bearing, the rollers and raceways are in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation. A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or single row configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.
NTN Precision Cylindrical Roller Bearings, Series: NN3, 60 mm Bore Dia, 95 mm Outside Dia, 2 Rows, 26 mm W, Open Closure, 102000 N, Hardened Alloy Steel Bearing, Machined Brass Cage, 6700 rpm Grease/7900 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | NN3 |
| Bearing Material | : | Hardened Alloy Steel |
| Load Capacity | : | 102000 N |
| Maximum Speed | : | 6700 rpm Grease/7900 rpm Oil |
| Outside Diameter | : | 95 mm |
| Number of Rows | : | 2 |
| Width | : | 26 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/NTN_16001_Catalog.pdf
