KR16H

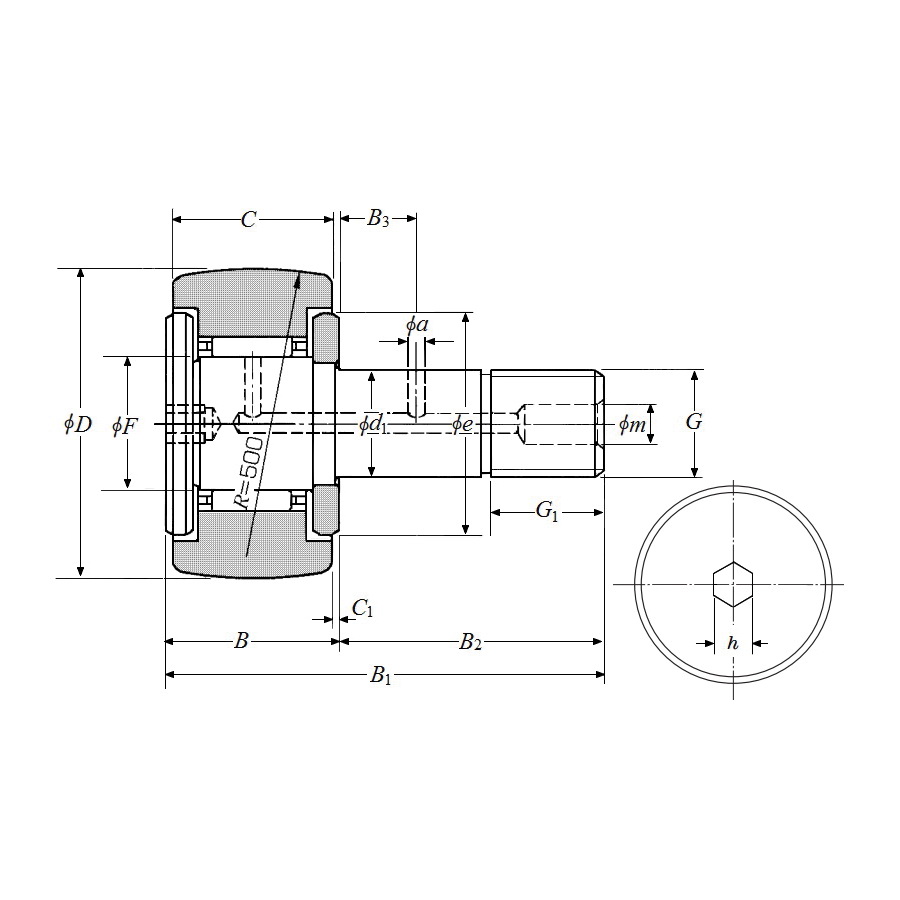

NTN KR16H KR Series Spherical OD Cam Follower, 16 mm Dia x 12 mm W Roller, 6 mm Dia x 16 mm L Stud, Through Hardened Steel Roller
- CP#:
- Item#: KR16H
- Mfr#: KR16H
- UPC: 4547359007909
- Hexagonal socket
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
This is a track roller complete with stud instead of inner ring, which is designed to operate with its outer ring rolling on the track. These NTN stud type track rollers are applied to eccentric roller, guide roller, rocker arm roller and more. similarly to the roller followers. One end of the stud is threaded and the hexagonal nut is used to be mounted easily.
NTN Cam Follower, Spherical OD, Series: KR Series, 16 mm Roller Dia, 12 mm Roller Width, 6 mm Stud Dia, 16 mm Stud Length, M6 x 1, 8 mm Thread Length, 4050 N Dynamic/4200 N Static, -40 to 120 deg C, Standard Stud, Open Closure, Hex, Through Hardened Steel Roller
SPECIFICATIONS
| Series | : | KR Series |
| Head Type | : | Hex |
| Load Capacity | : | 4050 N Dynamic/4200 N Static |
| Roller Diameter | : | 16 mm |
| Roller Material | : | Through Hardened Steel |
| Roller Width | : | 12 mm |
| Stud Diameter | : | 6 mm |
| Stud Length | : | 16 mm |
| Stud Type | : | Standard |
| Thread Length | : | 8 mm |
| Thread Size | : | M6 x 1 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_CR8_Catalog.pdf
