JELFU-1.7/16

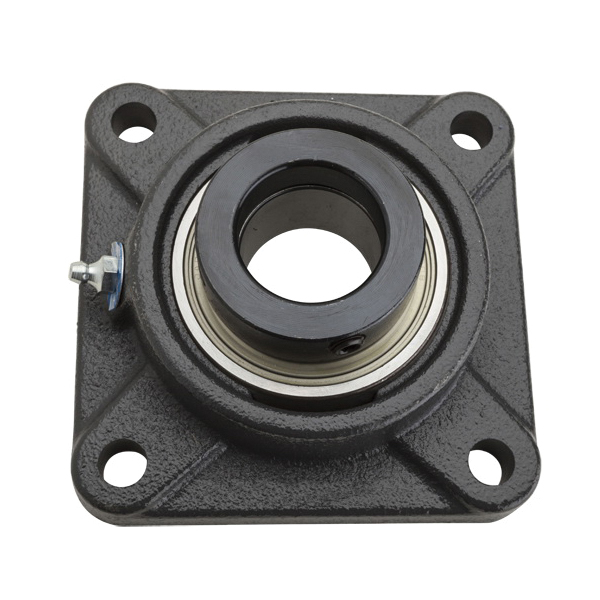

NTN JELFU-1.7/16 ULTRA-CLASS™ Standard Duty Self-Aligning Flange Mounted Ball Bearing Unit With Narrow Inner Ring, 1-7/16 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 4.6562 in OAL/Dia
- CP#:
- Item#: JELFU-1.7/16
- Mfr#: JELFU-1.7/16
- UPC: 4547359080827
- Inserts feature black oxide coating for superior protection from condensation and humidity
- NTN's exclusive ball-point set screw provides excellent shaft tightening without damage to the mounting surface
- A specialized seal and flinger design prevents particles from reaching the inner ball bearings and raceways, reducing wear and corrosion
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The ULTRA-CLASS™ mounted-unit line is feature rich and high performing. Using a combined elastomeric seal, in tandem with NTN's outer flinger design, each mounted unit exhibits a fan-like mechanism that effectively keeps particles away from the inner ball bearing and raceways. Industry standard sizing in millimeters and inches means that bearing inserts are easily interchangeable and adaptable to numerous housing configurations.
NTN Flange Mounted Ball Bearing Unit, Standard Duty Self-Aligning, Series: ULTRA-CLASS™, 1-7/16 in Bore Dia, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting Type, 4.6562 in Overall Length/Diameter, 1.531 in Overall Depth, 4.6562 in Overall Height, Eccentric Locking Collar Locking Device, Cast Iron Bearing, Rubber Seal, 5750 lb Dynamic/3450 lb Static
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Series | : | ULTRA-CLASS™ |
| Bearing Material | : | Cast Iron |
| Flange Mounting Type | : | 4-Bolt Square |
| Locking Device | : | Eccentric Locking Collar |
| Load Capacity | : | 5750 lb Dynamic/3450 lb Static |
| Overall Depth | : | 1.531 in |
| Overall Height | : | 4.6562 in |
| Overall Length/Diameter | : | 4.6562 in |
| Seal Material | : | Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/NTN_JELFLU112_Catalog.pdf
