JELFLU-1

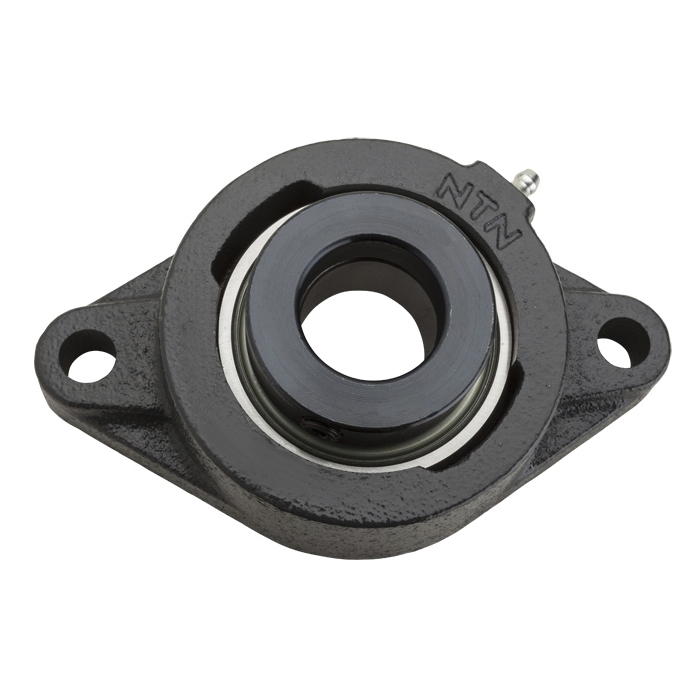

NTN JELFLU-1 1-Piece Light Duty Ball Bearing Unit, 25.4 mm Dia Bore, 98.8 mm L Bolt Center-to-Center, 98.8 mm Dia Bolt Circle, 2-Bolt Rhombus Flange Mount, 124.6 mm OAL/Dia
- CP#:
- Item#: JELFLU-1
- Mfr#: JELFLU-1
- Relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: JELFLU, 25.4 mm Bore, 98.8 mm Bolt Center-to-Center Length, 98.8 mm Diameter Bolt Circle, 2-Bolt Rhombus Flange Mounting, 124.6 mm Overall Length/Diameter, 42.5 mm Overall Depth, 69.9 mm Overall Height, Eccentric Locking Collar Locking Device, Nitrile Rubber Seal, 14000 N Dynamic/7850 N Static Load, 5900 rpm Maximum, -40 to 120 deg C, Black Oxide
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 98.8 mm |
| Series | : | JELFLU |
| Bolt Circle Diameter | : | 98.8 mm |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Locking Device | : | Eccentric Locking Collar |
| Load Capacity | : | 14000 N Dynamic/7850 N Static |
| Maximum Speed | : | 5900 rpm |
| Overall Depth | : | 42.5 mm |
| Overall Height | : | 69.9 mm |
| Overall Length/Diameter | : | 124.6 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
