HTA022UT2DB/GNP4L

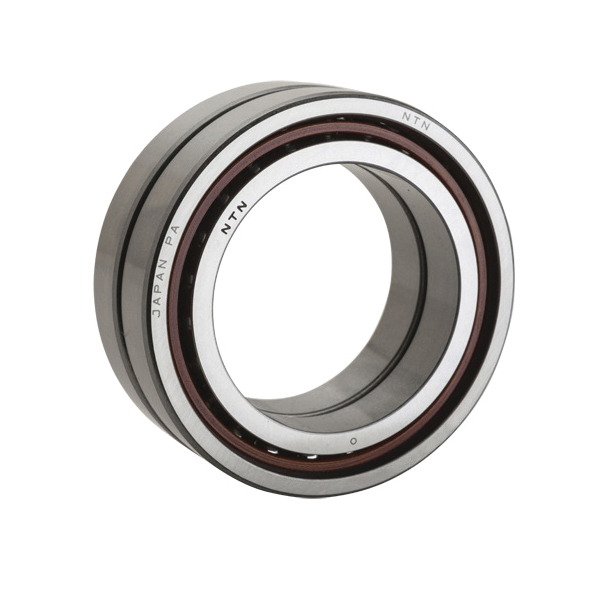

NTN HTA022UT2DB/GNP4L ULTAGE® HTA Round Bore Angular Contact Ball Bearing, 110 mm Dia Bore, 170 mm OD, 2 Rows, 54 mm W, 40 deg, 222000 N Load
- CP#:
- Item#: HTA022UT2DB/GNP4L
- Mfr#: HTA022UT2DB/GNP4L
- UPC: 4547359816280
- Internal specifications have been optimized to create an angular contact bearing for axial loads that offers the same level of rigidity as the conventional HTA-type, but with increased axial capacity and a higher operating speed
- Steel ball
- ISO class 4 precision rating
- Fiber glass reinforced cage
- 88500 N dynamic/222000 N static
- Back-to-back arrangement
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

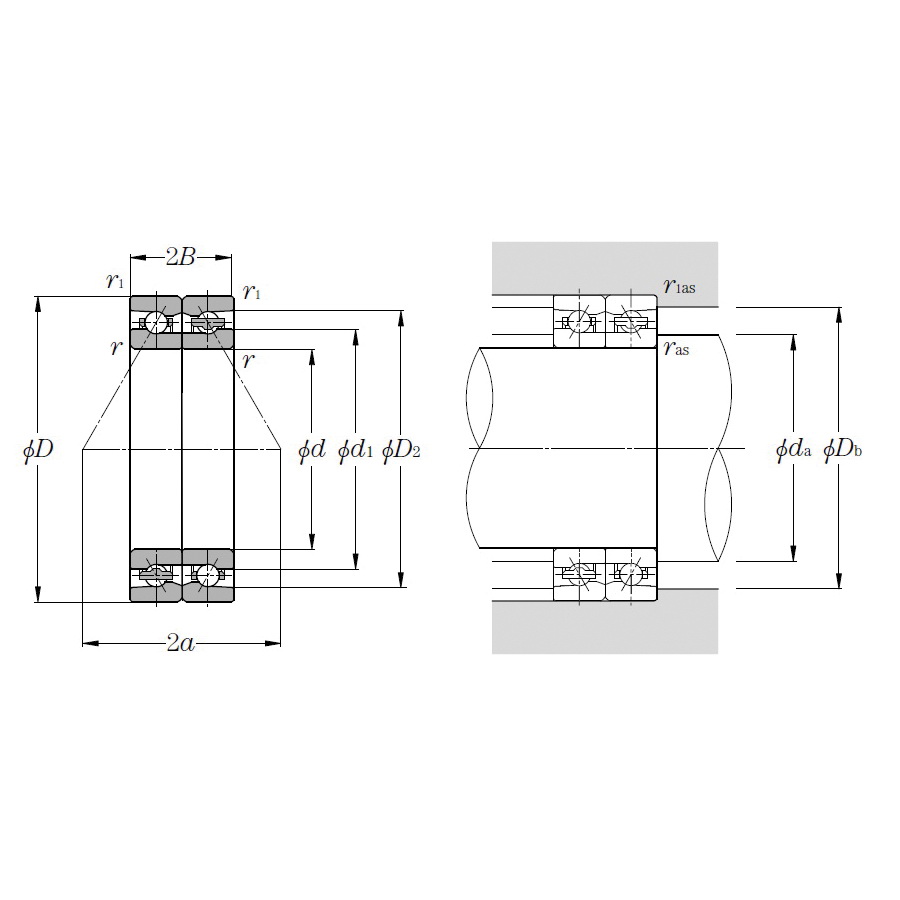

Duplex angular contact ball bearings can be combined in rows of two, three or four bearings to accommodate required specifications. The back-to-back duplex (DB) arrangement and the face-to-face duplex (DF) arrangement allow for the application of both radial loads and axial loads in both directions. The DB arrangement has a wide space between load points and can handle large moment loads. For this reason, this type of duplex arrangement is preferable for use on the main spindles of machine tools.
NTN Angular Contact Ball Bearing, Round Bore, Series: ULTAGE® HTA, 110 mm Bore Dia, 170 mm Outside Dia, 2 Rows, 54 mm W, 40 deg Contact, Open Closure, 222000 N, High Carbon Chrome Steel Bearing, Nylon Cage, 5400 rpm Grease/6800 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | ULTAGE® HTA |
| Bearing Material | : | High Carbon Chrome Steel |
| Contact Angle | : | 40 deg |
| Load Capacity | : | 222000 N |
| Maximum Speed | : | 5400 rpm Grease/6800 rpm Oil |
| Outside Diameter | : | 170 mm |
| Number of Rows | : | 2 |
| Width | : | 54 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/458/NTN_5SBNT904DTP2_Catalog.pdf
