NTN EC-6001ZZ
NTN
Email Print

EC-6001ZZ

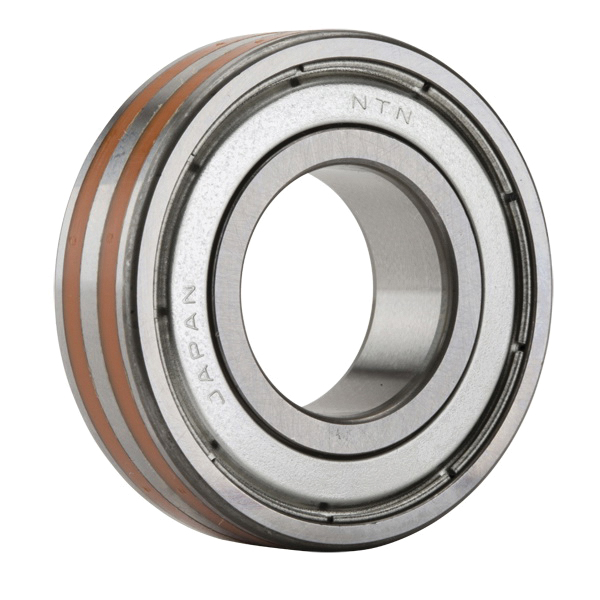

NTN EC-6001ZZ Round Bore Standard Small Expansion Compensating Bearing, 12 mm Dia Bore, 28 mm OD, 1 Rows, 8 mm W, 5100 N Load

  • Item#: EC-6001ZZ
  • Mfr#: EC-6001ZZ
  • UPC: 4547359471144
    • The sealed V-slot around the inner ring creates an air and grease pocket which increases the labyrinth effect
    • This is a non-contact, low-friction torque type bearing assembly, which can be used effectively for general protection
    • ISO class 0 precision rating
    • CN radial clearance
    • 5100 N dynamic/2390 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.

NTN Expansion Compensating Bearing, Round Bore Standard Small, Series: EC-60, 12 mm Bore, 28 mm OD, 1 Rows, 8 mm Width, Double Shield Closure, 5100 N Load, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 26000 rpm Grease/30000 rpm Oil Maximum, -40 to 120 deg C

SPECIFICATIONS

Series      :      EC-60
Bearing Material      :      High Carbon Chrome Steel
Load Capacity      :      5100 N
Maximum Speed      :      26000 rpm Grease/30000 rpm Oil
Outside Diameter      :      28 mm
Number of Rows      :      1
Width      :      8 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/NTN_16001_Catalog.pdf
