BST30X62-1BDBTP4

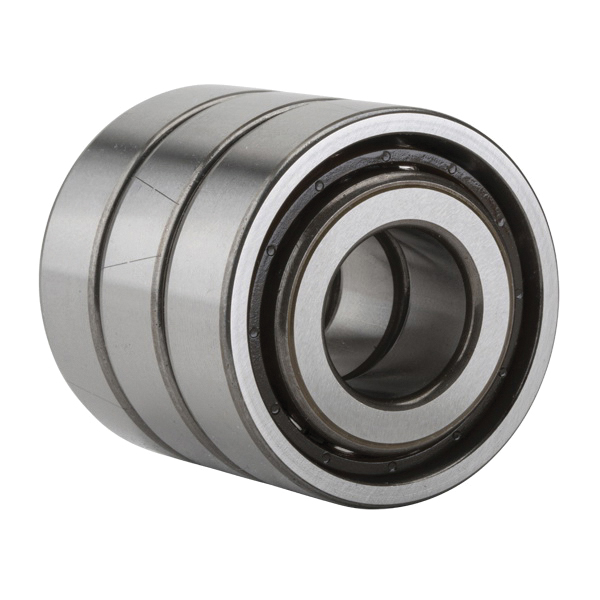

NTN BST30X62-1BDBTP4 ULTAGE® BST Round Bore Angular Contact Thrust Ball Bearing, 30 mm Dia Bore, 62 mm OD, 3 Rows, 45 mm W, 118000 N Load
- CP#:
- Item#: BST30X62-1BDBTP4
- Mfr#: BST30X62-1BDBTP4
- UPC: 4547359033021
- Surface modification treatment on the bearing ring raceways has led to a longer bearing life and much improved fretting resistance
- Owing to prelubrication with a special grease, the sealed type boasts a longer bearing life and simpler maintenance work
- All variants are flush ground and are provided with a standard preload
- 60 deg contact angle
- ISO class 4 precision rating
- Back-to-back arrangement
- Molded cage
- 47500 N dynamic/118000 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Angular Contact Thrust Ball Bearing, Round Bore, Series: ULTAGE® BST, 30 mm Bore Dia, 62 mm Outside Dia, 3 Rows, 45 mm W, Open Closure, 118000 N, High Carbon Chrome Steel Bearing, Resin Cage, -40 to 120 deg C
SPECIFICATIONS
| Series | : | ULTAGE® BST |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 118000 N |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 3 |
| Width | : | 45 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/538/NTN_2ABST35X721BLX03_Catalog.pdf
