BNT002/GNP2

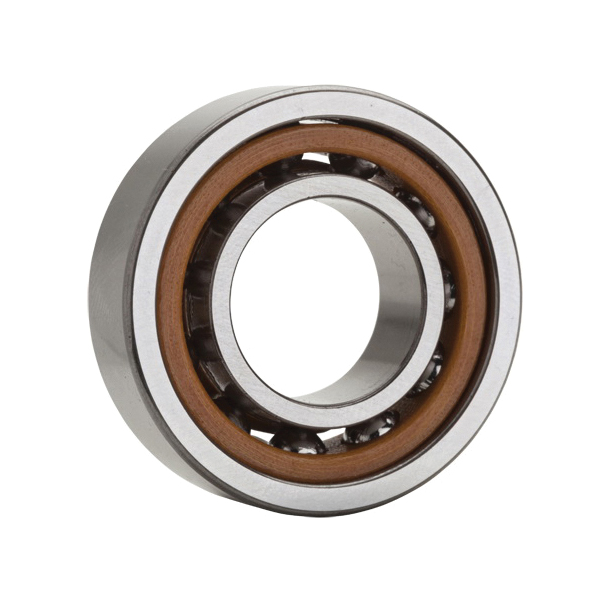

NTN BNT002/GNP2 Round Bore Angular Contact Ball Bearing, 15 mm Dia Bore, 32 mm OD, 1 Row, 9 mm W, 15 deg, 4750 N Load
- CP#:
- Item#: BNT002/GNP2
- Mfr#: BNT002/GNP2
- UPC: 4547359030211
- All variants are flush ground
- Steel ball
- ISO class 2 precision rating
- Machined cage
- 4750 N dynamic/2220 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

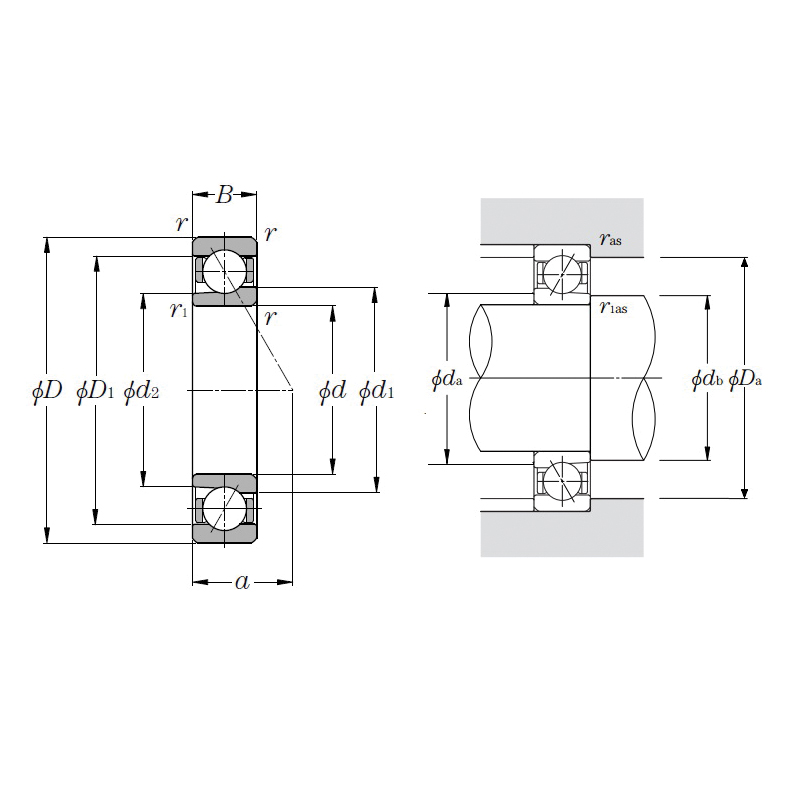

Angular contact ball bearings for radial loads used in machine tools are bearings which inner and outer rings cannot be separated. This type of bearing includes series 78, 79U, 70U, 72, HSE9, HSE0, BNS9, BNS0, BNT9, BNT0 and BNT2. For angular contact ball bearings, an imaginary straight line connecting the contact points between the balls and inner and outer rings forms an angle with the radial axis. The optimal contact angle can be selected to meet functional requirements such as high speed or high rigidity.
NTN Angular Contact Ball Bearing, Round Bore, Series: BNT0, 15 mm Bore Dia, 32 mm Outside Dia, 1 Row, 9 mm W, 15 deg Contact, Open Closure, 4750 N, High Carbon Chrome Steel Bearing, Phenolic Resin Cage, 46000 rpm Grease/91500 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | BNT0 |
| Bearing Material | : | High Carbon Chrome Steel |
| Contact Angle | : | 15 deg |
| Load Capacity | : | 4750 N |
| Maximum Speed | : | 46000 rpm Grease/91500 rpm Oil |
| Outside Diameter | : | 32 mm |
| Number of Rows | : | 1 |
| Width | : | 9 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/458/NTN_5SBNT904DTP2_Catalog.pdf
