ASS204N

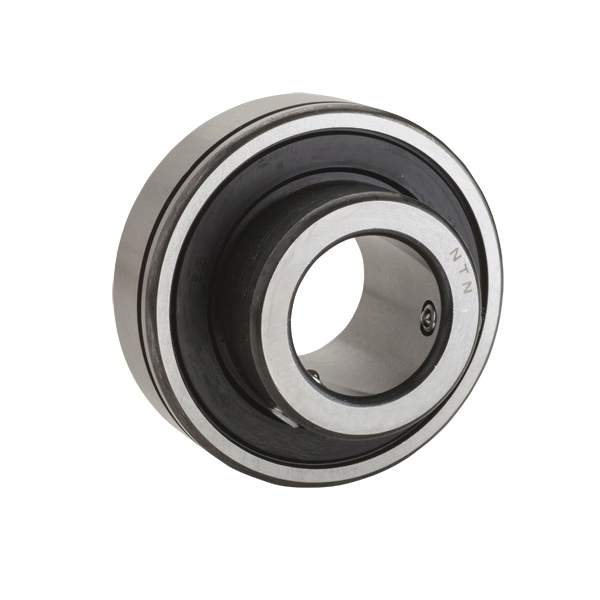

NTN ASS204N Round Bore Light Duty Ball Insert Bearing, 20 mm Dia Bore, 47 mm OD, 25 mm W, 12800 N Load
- CP#:
- Item#: ASS204N
- Mfr#: ASS204N
- UPC: 4547359020793
- Contact seal
- Non-relubricatable
- Cylindrical OD snap ring groove
- 12800 N dynamic/6650 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Insert Bearing, Round Bore Light Duty, Series: ASS2, 20 mm Bore, 47 mm OD, 25 mm Width, Double Seal Closure, 12800 N Load, Hardened Steel Bearing, Nitrile Rubber Seal, 6700 rpm Grease Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | ASS2 |
| Bearing Material | : | Hardened Steel |
| Closure Type | : | Double Seal |
| Load Capacity | : | 12800 N |
| Maximum Speed | : | 6700 rpm Grease |
| Outside Diameter | : | 47 mm |
| Seal Material | : | Nitrile Rubber |
| Width | : | 25 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
