ASS201-008NR

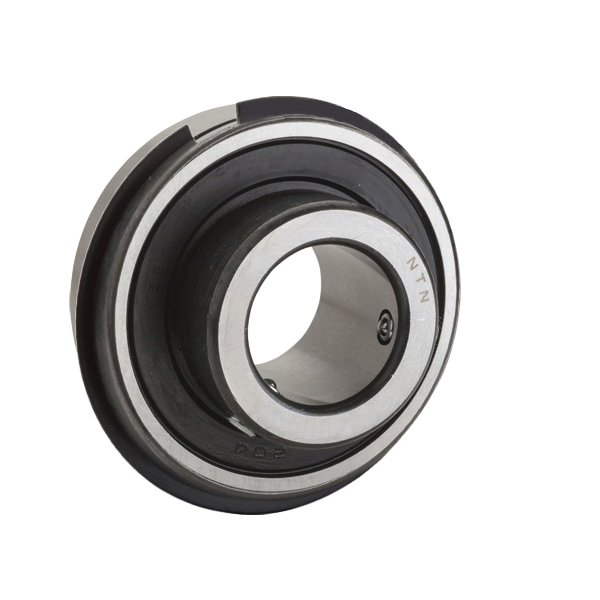

NTN ASS201-008NR Round Bore Light Duty Ball Insert Bearing, 12.7 mm Dia Bore, 40 mm OD, 22 mm W, 9600 N Load
- CP#:
- Item#: ASS201-008NR
- Mfr#: ASS201-008NR
- Contact seal
- Steel ball
- Non-relubricatable
- CN radial clearance
- Cylindrical OD snap ring
- 9600 N dynamic/4600 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Insert Bearing, Round Bore Light Duty, Series: ASS2, 12.7 mm Bore, 40 mm OD, 22 mm Width, Double Seal Closure, 9600 N Load, Hardened Steel Bearing, Nitrile Rubber Seal, -40 to 120 deg C
SPECIFICATIONS
| Bearing Material | : | Hardened Steel |
| Closure Type | : | Double Seal |
| Load Capacity | : | 9600 N |
| Outside Diameter | : | 40 mm |
| Seal Material | : | Nitrile Rubber |
| Duty Type | : | Light |
| Inside Diameter | : | 12.7 mm |
| Mounted | : | Yes |
| Measurement System | : | Metric |
| Width | : | 22 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
