ARN3570

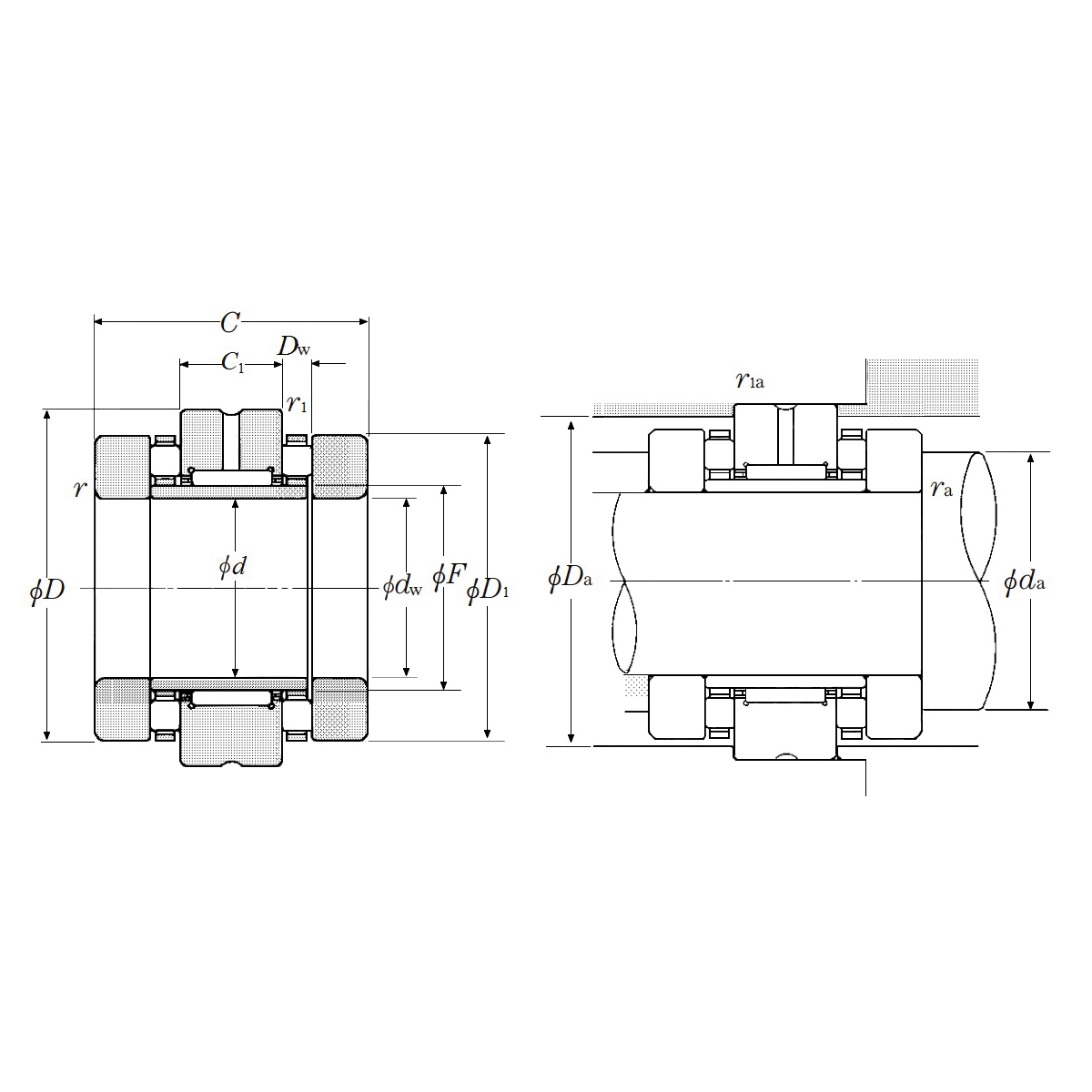

NTN ARN3570 Complex Bearing With Inner Ring, 35 mm Dia Bore, 70 mm OD, 54 mm W, 121000 N Load
- CP#:
- Item#: ARN3570T2
- Mfr#: ARN3570
- ISO class 0 tolerance rating
- CN radial clearance
- Needle roller bearing with thrust ball bearing
- 26400 N radial dynamic/47000 N radial static
- 43000 N axial dynamic/121000 N axial static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN complex bearing is composed of a radial needle roller bearing to support radial load and a thrust ball bearing or a thrust roller bearing to support axial load which are integrated into one bearing unit. Comparing with individual use of a radial bearing and a thrust bearing for the same purpose, this complex bearing saves the required installation space and thereby can contribute to making the overall construction of an equipment more compact.
NTN Complex Bearing, Series: ARN, 35 mm Bore Dia, 70 mm Outside Dia, 54 mm W, Open Closure, 121000 N, High Carbon Chrome Steel Bearing, Steel Cage, 4800 rpm Grease/1200 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | ARN |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 121000 N |
| Maximum Speed | : | 4800 rpm Grease/1200 rpm Oil |
| Outside Diameter | : | 70 mm |
| Width | : | 54 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/448/NTN_AS1100_Catalog.pdf
