AELFD206-104

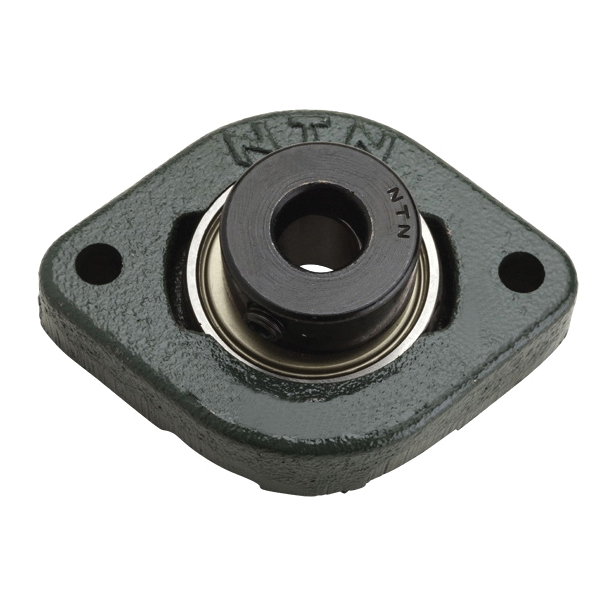

NTN AELFD206-104 1-Piece Light Duty Ball Bearing Unit, 31.75 mm Dia Bore, 90 mm L Bolt Center-to-Center, 90 mm Dia Bolt Circle, 2-Bolt Rhombus Flange Mount, 113 mm OAL/Dia
- CP#:
- Item#: AELFD206-104
- Mfr#: AELFD206-104
- UPC: 4547359460407
- Non-relubricatable
- Contact seal
- Cast iron housing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: AELFD2, 31.75 mm Bore, 90 mm Bolt Center-to-Center Length, 90 mm Diameter Bolt Circle, 2-Bolt Rhombus Flange Mounting, 113 mm Overall Length/Diameter, 38.7 mm Overall Depth, 84 mm Overall Height, Eccentric Locking Collar Locking Device, Nitrile Rubber Seal, 19500 N Dynamic/11300 N Static Load, 4900 rpm Maximum, -40 to 120 deg C

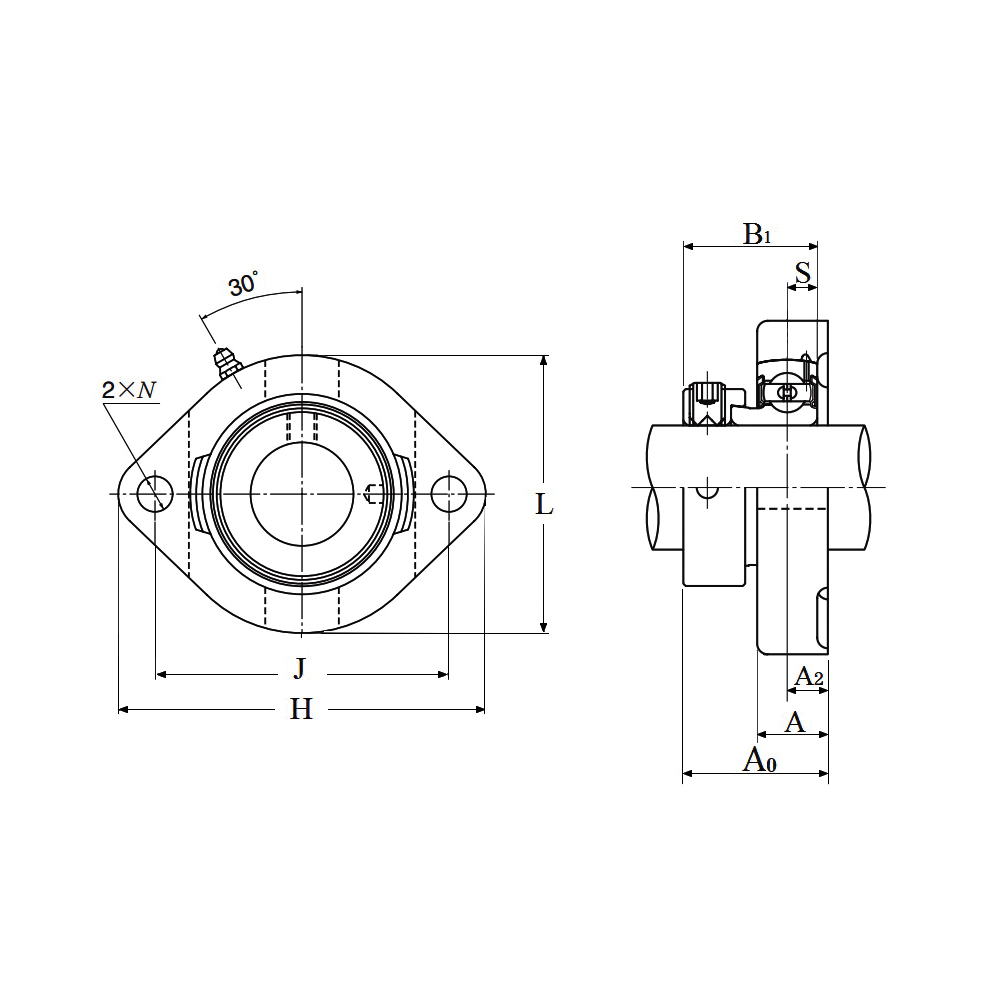

SPECIFICATIONS
| Bolt Center-to-Center Length | : | 90 mm |
| Series | : | AELFD2 |
| Bolt Circle Diameter | : | 90 mm |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Locking Device | : | Eccentric Locking Collar |
| Load Capacity | : | 19500 N Dynamic/11300 N Static |
| Maximum Speed | : | 4900 rpm |
| Overall Depth | : | 38.7 mm |
| Overall Height | : | 84 mm |
| Overall Length/Diameter | : | 113 mm |
| Seal Material | : | Nitrile Rubber |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
