88506

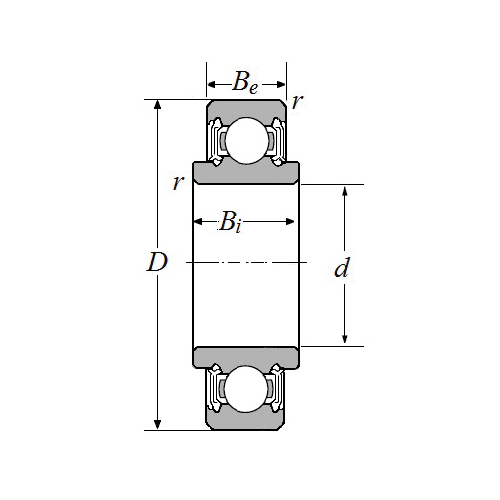

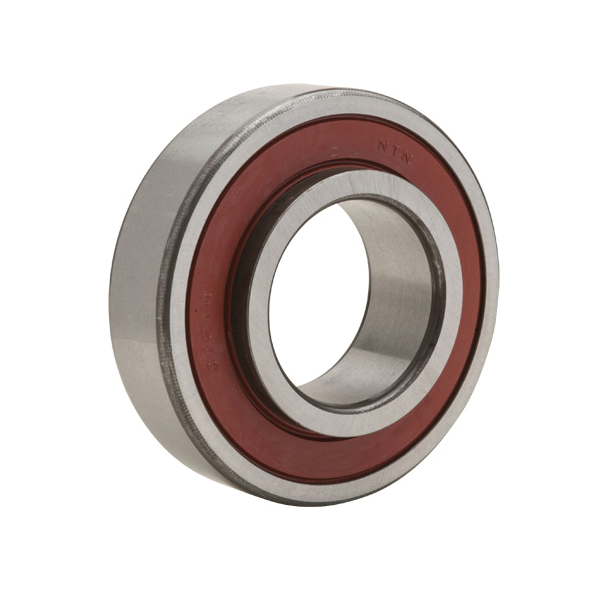

NTN 88506 88000 Round Bore Standard Small Deep Groove Radial Ball Bearing, 30 mm Dia Bore, 62 mm OD, 1 Rows, 24 mm W, 19600 N Load
- CP#:
- Item#: 88506/2AS
- Mfr#: 88506
- UPC: 4547359590753
- ISO class 0 precision rating
- Double sealed contact nitrile rubber seal
- CN radial clearance
- 19600 N dynamic/11300 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.
NTN Deep Groove Radial Ball Bearing, Round Bore Standard Small, Series: 88000, 30 mm Bore, 62 mm OD, 1 Rows, 24 mm Width, Double Seal Closure, 19600 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 7300 rpm Grease Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 88000 |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 19600 N |
| Maximum Speed | : | 7300 rpm Grease |
| Outside Diameter | : | 62 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Nitrile Rubber |
| Width | : | 24 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
