7019UDTBT/GMP4

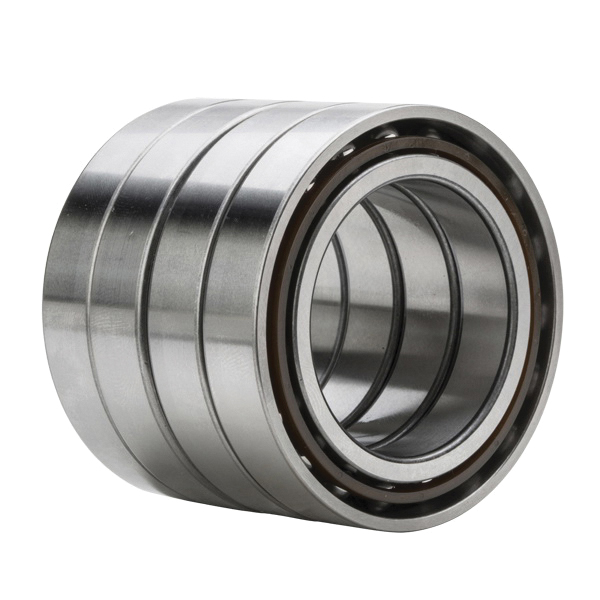

NTN 7019UDTBT/GMP4 70 Series Round Bore Angular Contact Ball Bearing, 95 mm Dia Bore, 145 mm OD, 2 Rows, 96 mm W, 30 deg, 70 kN Load
- CP#:
- Item#: 7019UDTBT/GMP4
- Mfr#: 7019UDTBT/GMP4
- UPC: 4547359642056
- Medium preload
- High strength 2-piece machined cage
- Tandem mounting
- 69 kN dynamic/70 kN static
- Steel ball
- ISO class 4 tolerance rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Angular contact ball bearings are non-separable bearings which have a certain contact angle in the radial direction relative to the straight line that runs through the point where each ball makes contact with the inner and outer rings. In addition to radial loads, single direction axial loads can also be accommodated by angular contact ball bearings. Furthermore, since an axial load is generated from a radial force, these bearings are generally used in pairs facing each other. Standard type, high speed use type and ultra high speed varieties of angular contact ball bearings are available through NTN, and there are also many duplex varieties. A bearing accuracy of JIS Class 5 or higher is applied to duplex type angular contact ball bearings, and in many cases they are given a preload, in compliance with standard preload levels, before being used in an application.
NTN Angular Contact Ball Bearing, Round Bore, Series: 70 Series, 95 mm Bore Dia, 145 mm Outside Dia, 2 Rows, 96 mm W, 30 deg Contact, Open Closure, 70 kN, High Carbon Chrome Steel Bearing, Brass Cage, 4320 rpm Grease/5880 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 70 Series |
| Bearing Material | : | High Carbon Chrome Steel |
| Contact Angle | : | 30 deg |
| Load Capacity | : | 70 kN |
| Maximum Speed | : | 4320 rpm Grease/5880 rpm Oil |
| Outside Diameter | : | 145 mm |
| Number of Rows | : | 2 |
| Width | : | 96 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
