626LLH

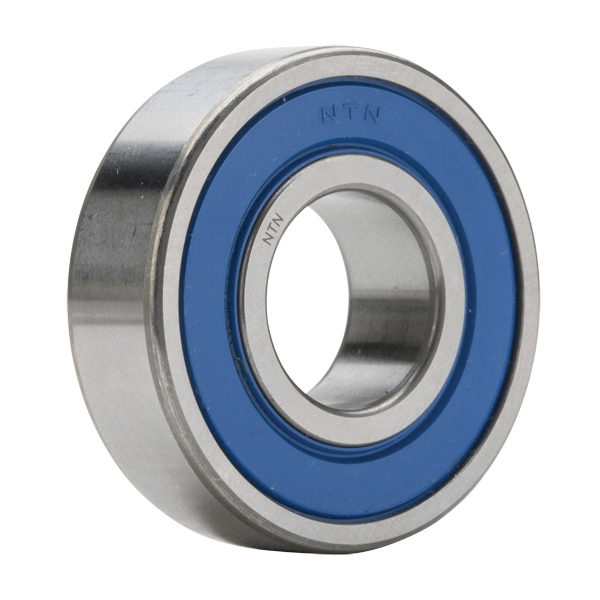

NTN 626LLH Micro Round Bore Extra Small Deep Groove Radial Ball Bearing, 6 mm Dia Bore, 19 mm OD, 1 Rows, 6 mm W, 2340 N Load
- CP#:
- Item#: 626LLHCNM
- Mfr#: 626LLH
- UPC: 4547359571233
- Normal clearance
- ISO class 0 precision rating
- 2340 N dynamic/885 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Single Row Radial Ball Bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. The cage in this bearing is pressed steel. For high speed bearings, machined brass cages are available. Bearings with locating snap rings are also available.
NTN Deep Groove Radial Ball Bearing, Round Bore Extra Small, Series: Micro, 6 mm Bore, 19 mm OD, 1 Rows, 6 mm Width, Double Seal Closure, 2340 N Load, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 34000 rpm Grease/40000 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | Micro |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 2340 N |
| Maximum Speed | : | 34000 rpm Grease/40000 rpm Oil |
| Outside Diameter | : | 19 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Nitrile Rubber |
| Width | : | 6 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
