NTN 6206LLUAC3
NTN
Email Print

6206LLUAC3

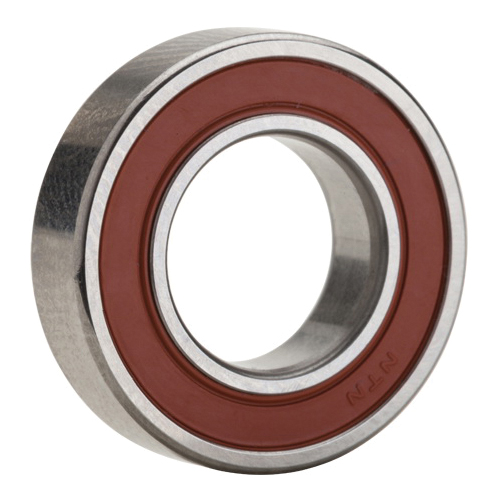

NTN 6206LLUAC3 62 Series Round Bore Standard Small Deep Groove Radial Ball Bearing, 30 mm Dia Bore, 62 mm OD, 1 Rows, 16 mm W, 19500 N Load

  • Item#: 6206LLUAC3
  • Mfr#: 6206LLUAC3
  • UPC: 4547359564266
    • ISO class 0 precision rating
    • Double sealed contact polyacrylic rubber seal
    • C3 radial internal clearance greater than normal
    • 19500 N dynamic/11300 N static
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.

NTN Deep Groove Radial Ball Bearing, Round Bore Standard Small, Series: 62 Series, 30 mm Bore, 62 mm OD, 1 Rows, 16 mm Width, Double Seal Closure, 19500 N Load, High Carbon Chrome Steel Bearing, Polyacrylic Seal, Pressed Steel Cage, 7300 rpm Grease Maximum, -40 to 120 deg C

SPECIFICATIONS

Series      :      62 Series
Bearing Material      :      High Carbon Chrome Steel
Load Capacity      :      19500 N
Maximum Speed      :      7300 rpm Grease
Outside Diameter      :      62 mm
Number of Rows      :      1
Seal Material      :      Polyacrylic
Width      :      16 mm

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
