6204LU/3AS

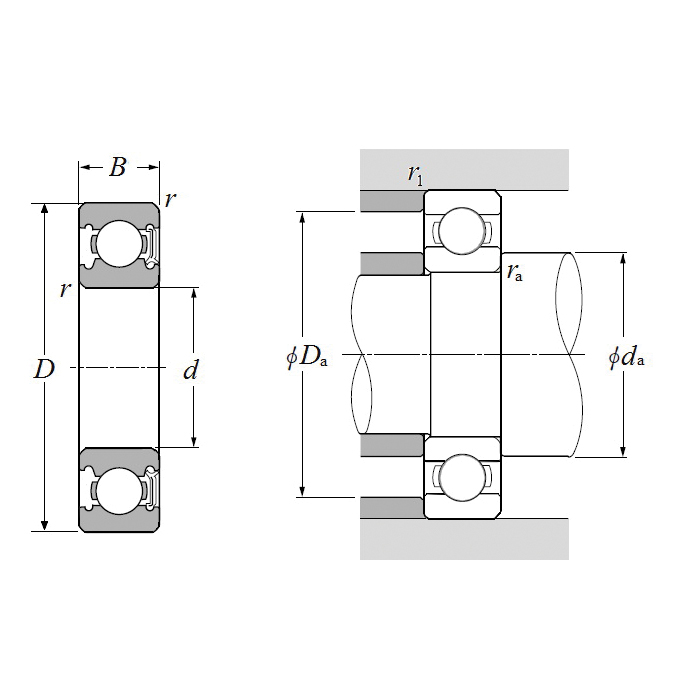

NTN 6204LU/3AS 62 Series Round Bore Standard Small Deep Groove Radial Ball Bearing, 20 mm Dia Bore, 47 mm OD, 1 Row, 14 mm W, 12800 N Load
- CP#:
- Item#: 6204LU/3A
- Mfr#: 6204LU/3AS
- UPC: 4547359562262
- The seal edge forms a double-lip
- The inner lip touches the V-slot side of the inner rings seal surface
- There is a slight gap between the inner ring and the outer lip which produces the labyrinth effect
- Even if friction causes the inner lip to wear, the outer lip constricts around the inner ring to compensate, and thus constantly preserving the perfect sealing effect
- Due to the fact that it is a contact type seal bearing, the torque will be a little greater but the seal will provide the optimum protection from dust penetration
- ISO class 0 precision rating
- Double-lip single sealed contact nitrile rubber seal
- Shell Alvania #3 grease prelubricant
- CN radial clearance
- 12800 N dynamic/6650 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.
NTN Deep Groove Radial Ball Bearing, Round Bore Standard Small, Series: 62 Series, 20 mm Bore Dia, 47 mm Outside Dia, 1 Row, 14 mm W, Single Sealed Closure, 12800 N, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 10000 rpm Grease Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 62 Series |
| Bearing Material | : | High Carbon Chrome Steel |
| Load Capacity | : | 12800 N |
| Maximum Speed | : | 10000 rpm Grease |
| Outside Diameter | : | 47 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Nitrile Rubber |
| Width | : | 14 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf
