24096BL1W33
NTN 24096BL1W33 Spherical Roller Bearing With Oil Groove, 480 mm Dia Bore, 700 mm OD, 2 Rows, 218 mm W, 10500000 N Load
- CP#:
- Item#: 24096BL1D1
- Mfr#: 24096BL1W33
- UPC: 4547359523294
- Spherical roller bearings possess the same self-aligning properties as other self-aligning bearings
- Adapters are used for installation of bearings with tapered bore on cylindrical shafts
- CN radial clearance
- Machined cage
- 4650000 N dynamic/10500000 N static
- Round bore
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION

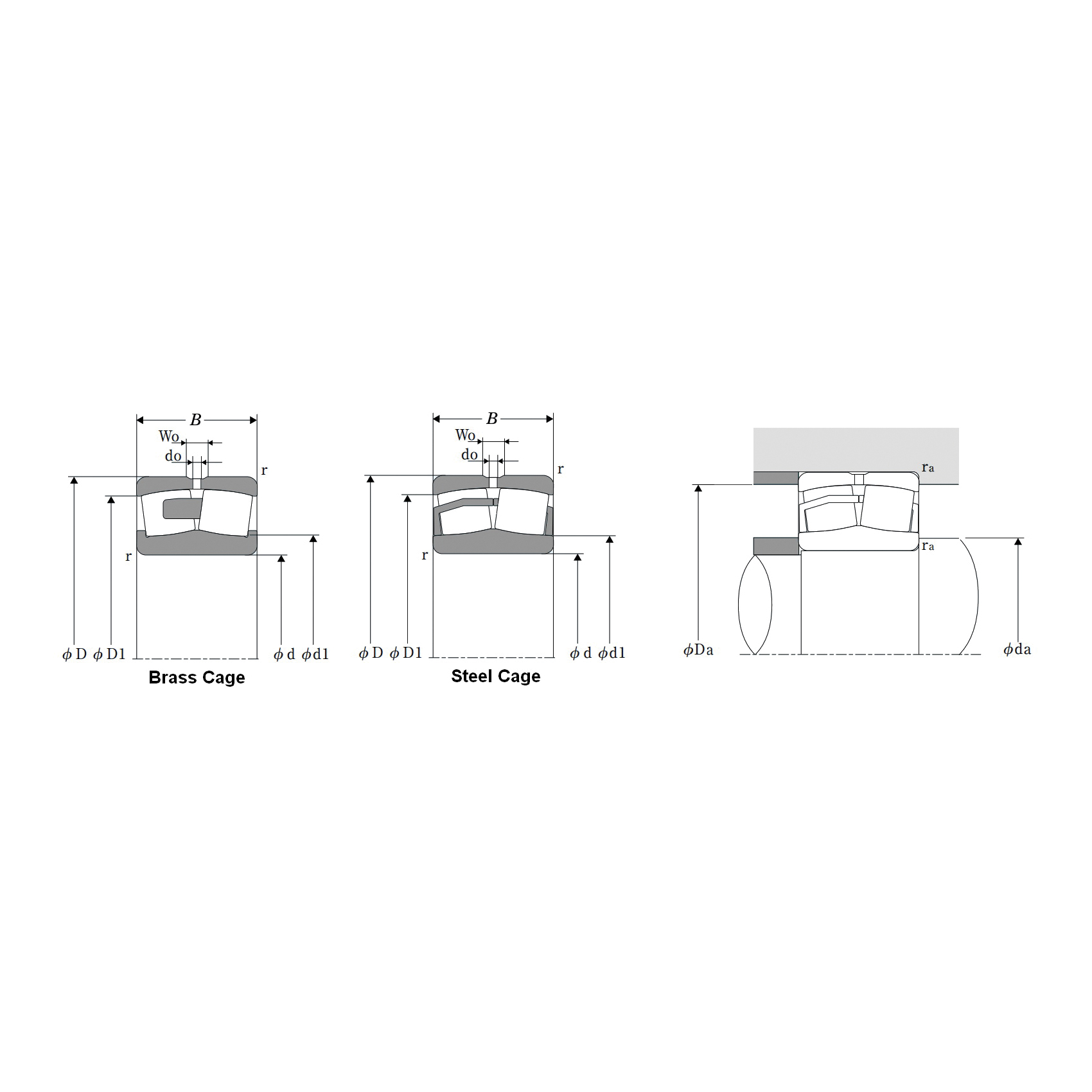

Spherical roller bearings equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel shaped rolling elements, NTN spherical roller bearings are able to adjust center alignment to handle inclination of the axle or shaft. There are variety of bearing types that differ according to internal design. Spherical roller bearings include as type equipped with an inner ring with a tapered bore. The bearing can easily be mounted on a shaft by means of an adapter or withdrawal sleeve. The bearing is capable of supporting heavy loads, and is therefore often used in industrial machinery. When heavy axial load is applied to the bearing, the load on rollers of another row is disappeared, and can cause problems. Attention must therefore be paid to operating conditions.
NTN Spherical Roller Bearing, Series: 240, 480 mm Bore Dia, 700 mm Outside Dia, 2 Rows, 218 mm W, Open Closure, 10500000 N, Through Hardened Steel Bearing, Machined Brass Cage, 380 rpm Grease/490 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 240 |
| Bearing Material | : | Through Hardened Steel |
| Load Capacity | : | 10500000 N |
| Maximum Speed | : | 380 rpm Grease/490 rpm Oil |
| Outside Diameter | : | 700 mm |
| Number of Rows | : | 2 |
| Width | : | 218 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf -
VIDEO LINK
https://youtu.be/4rXPAd9xD3w
